Gripbelt Sheaves with Split Taper Bushings

TA

For Use with All "A" Section Belts

Standard  Keyseats

Table No.1

Bore Range

Keyseat

1/2"—9/16"

1/8"×1/16"

5/8—7/8

3/16×3/32

15/16—1 1/4

1/4×1/8

1 5/16—1 3/8

5/16×5/32

1 7/16—1 3/4

3/8×3/16

1 13/16—2 1/4

1/2×1/4

2 5/16—2 11/16

5/8×5/16

1 3/8 Bore Bushings also available with 3/8"×3/16" Keyseat .

Table No.2

Bushing Dimension

Part No.

Dimension

Bore Range

Wt .Lbts.

M

L

G

X

E

T

U

D

H

P1

2 3/16"

1 15/16"

5/8"

1 5/16"

1/4"

1 17/32"

13/32

1 15/16"

3"

1/2"—1 3/4"

1 1/4

Q1

2 25/32

2 1/2

3/4

1 3/4

9/32

1 31/32

17/32

2 7/8"

4 1/8

3/4—2 11/16

3 1/2

TYPE 2

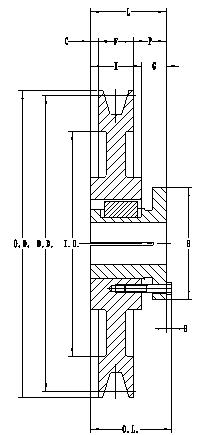

TYPE 10

TYPE 16

Table No.3

Specifications—Stock "TA"Sheaves

DIAMETERS

1 GROOVE, F=3/4"

Datum "A"

Outside

Inside

Part Number

Type

Dimensions

Wt.Less Bush.

Sheave

Bushing

O.L.

L

P

C

H

G

X

E

3.0"

3.25"

—

1TA30

P1

2

2 3/16"

1 15/16"

1 3/16"

0"

3"

5/8"

1 5/16"

1/4"

1.4

3.2

3.45

—

1TA32

P1

2

2 3/16

1 15/16

1 3/16

0

3

5/8

1 5/16

1/4

1.6

3.4

3.65

—

1TA34

P1

2

2 3/16

1 15/16

1 3/16

0

3

5/8

1 5/16

1/4

1.9

3.6

3.85

—

1TA36

P1

2

2 3/16

1 15/16

1 3/16

0

3

5/8

1 5/16

1/4

2.3

3.8

4.05

—

1TA38

P1

2

2 3/16

1 15/16

1 3/16

0

3

5/8

1 5/16

1/4

2.5

4.0

4.25

—

1TA40

P1

2

2 3/16

1 15/16

1 3/16

0

3

5/8

1 5/16

1/4

2.7

4.2

4.45

—

1TA42

P1

10-Sol

2 3/16

1 15/16

5/8

9/16

3

—

—

1/4

1.8

4.4

4.65

—

1TA44

P1

10-Sol

2 3/16

1 15/16

5/8

9/16

3

—

—

1/4

2.1

4.6

4.85

—

1TA46

P1

10-Sol

2 3/16

1 15/16

5/8

9/16

3

—

—

1/4

2.5

4.8

5.05

—

1TA48

P1

10-Sol

2 3/16

1 15/16

5/8

9/16

3

—

—

1/4

2.6

5.0

5.25

—

1TA50

P1

10-Sol

2 3/16

1 15/16

5/8

9/16

3

—

—

1/4

3.0

5.2

5.45

—

1TA52

P1

10-Sol

2 3/16

1 15/16

5/8

9/16

3

—

—

1/4

3.4

5.4

5.65

—

1TA54

P1

10-Sol

2 3/16

1 15/16

5/8

9/16

3

—

—

1/4

3.5

5.6

5.85

—

1TA56

P1

10-Sol

2 3/16

1 15/16

5/8

9/16

3

—

—

1/4

3.8

5.8

6.05

—

1TA58

P1

10-Sol

2 3/16

1 15/16

5/8

9/16

3

—

—

1/4

4.1

6.0

6.25

4 3/4"

1TA60

P1

10-Web

2 3/16

1 15/16

5/8

9/16

3

—

—

1/4

4.0

6.2

6.45

4 15/16

1TA62

P1

10-Web

2 3/16

1 15/16

5/8

9/16

3

—

—

1/4

4.0

6.4

6.65

5 3/16

1TA64

P1

10-Web

2 3/16

1 15/16

5/8

9/16

3

—

—

1/4

4.3

7.0

7.25

5 13/16

1TA70

P1

16-Arm

2 3/16

1 15/16

29/32

9/32

3

5/8

1 5/16

1/4

5.1

8.2

8.45

6 15/16

1TA82

P1

16-Arm

2 3/16

1 15/16

29/32

9/32

3

5/8

1 5/16

1/4

6.6

9.0

9.25

7 13/16

1TA90

P1

16-Arm

2 3/16

1 15/16

29/32

9/32

3

5/8

1 5/16

1/4

7.3

10.6

10.85

9 3/8

1TA106

P1

16-Arm

2 3/16

1 15/16

29/32

9/32

3

5/8

1 5/16

1/4

8.3

12.0

12.25

10 13/16

1TA120

Q1

16-Arm

2 25/32

2 1/2

1 1/4

1/2

4 1/8

3/4

1 3/4

9/32

13.4

15.0

15.25

13 13/16

1TA150

Q1

16-Arm

2 25/32

2 1/2

1 1/4

1/2

4 1/8

3/4

1 3/4

9/32

16.0

18.0

18.25

16 13/16

1TA180

Q1

16-Arm

2 25/32

2 1/2

1 1/4

1/2

4 1/8

3/4

1 3/4

9/32

19.3

19.5

19.75

18  1/4

1TA195

Q1

16-Arm

2 25/32

2 1/2

1 1/4

1/2

4 1/8

3/4

1 3/4

9/32

23.5

24.5

24.75

23 1/4

1TA245

Q1

16-Arm

2 25/32

2 1/2

1 1/4

1/2

4 1/8

3/4

1 3/4

9/32

27.3
