| Q-D Sheaves for "A" and "B" Belts | B | ||||||||||
|
|
Standard Keyseats | ||||||||||
| Table No.1 | |||||||||||
| Bore Range | Keyseat | ||||||||||
| 1/2" ！ 9/16" | 1/8" x 1/16" | ||||||||||
| 5/8 ！ 7/8 | 3/16 x 3/32 | ||||||||||
| 15/16 ！ 1 1/4 | 1/4 x 1/8 | ||||||||||
| 1 5/16 ！ 1 3/8 | 5/16 x 5/32 | ||||||||||
| 1 7/16 ！ 1 3/4 | 3/8 x 3/16 | ||||||||||
| 1 13/16 ！ 2 1/4 | 1/2 x 1/4 | ||||||||||
| 2 5/16 ！ 2 3/4 | 5/8 x 5/16 | ||||||||||
| 2 13/16 ！ 3 1/4 | 3/4 x 3/8 | ||||||||||
| 3 3/8！ 3 3/4 | 7/8 x 7/16 | ||||||||||

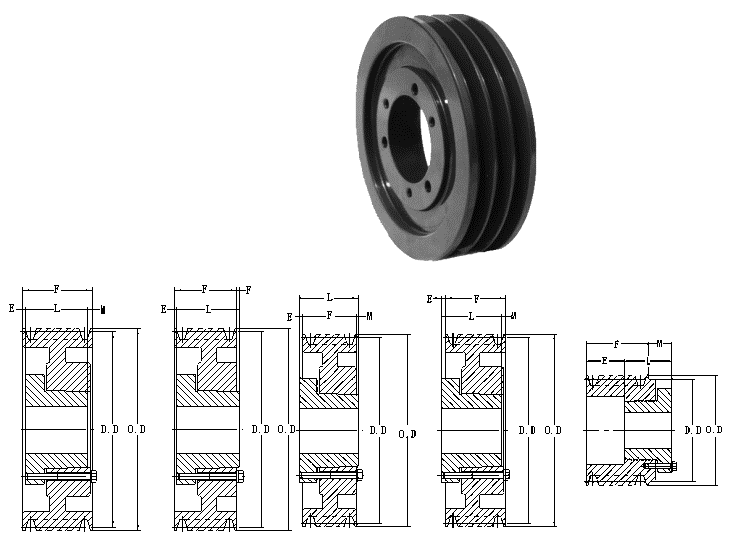

| TYPE E | |||||||||||
| TYPE A | TYPE B | TYPE C | TYPE D | ||||||||
| Table No.2 | Specifications | ||||||||||
| Part No. | Bushing | Bore Range | Type￥ | D.D. | O.D. | E | L | M | Wt. Less Bushing | ||
| "B" Belts | "A" Belts | ||||||||||
| 1 GROOVE, F = 7/8"(1 B34H-1B70SDS) F = 1" (1B74SDS-1B200SK) | |||||||||||
| 1B34SH | SH | 1/2" - 1 5/8" | E-1 | 3.4" | 3.0" | 3.75" | 7/32" | 1 5/16" | 21/32" | 2.0 | |
| 1B36SH | SH | 1/2 - 1 5/8 | D-1 | 3.6 | 3.2 | 3.95 | 19/32 | 1 5/16 | 5/32 | 2.2 | |
| 1B38SH | SH | 1/2 - 1 5/8 | D-1 | 3.8 | 3.4 | 4.15 | 19/32 | 1 5/16 | 5/32 | 2.4 | |
| 1B40SH | SH | 1/2 - 1 5/8 | C-1 | 4.0 | 3.6 | 4.35 | 11/32 | 1 5/16 | 3/32 | 2.7 | |
| 1B42SH | SH | 1/2 - 1 5/8 | C-1 | 4.2 | 3.8 | 4.55 | 11/32 | 1 5/16 | 3/32 | 2.9 | |
| 1B44SH | SH | 1/2 - 1 5/8 | C-1 | 4.4 | 4 | 4.75 | 11/32 | 1 5/16 | 3/32 | 3.4 | |
| 1B46SDS | SDS | 1/2 - 2 | C-1 | 4.6 | 4.2 | 4.95 | 11/32 | 1 5/16 | 3/32 | 4.0 | |
| 1B48SDS | SDS | 1/2 - 2 | C-1 | 4.8 | 4.4 | 5.15 | 11/32 | 1 5/16 | 3/32 | 4.3 | |
| 1B50SDS | SDS | 1/2 - 2 | C-1 | 5.0 | 4.6 | 5.35 | 11/32 | 1 5/16 | 3/32 | 4.7 | |
| 1B52SDS | SDS | 1/2 - 2 | C-1 | 5.2 | 4.8 | 5.55 | 11/32 | 1 5/16 | 3/32 | 5.0 | |
| 1B54SDS | SDS | 1/2 - 2 | C-1 | 5.4 | 5 | 5.75 | 11/32 | 1 5/16 | 3/32 | 5.3 | |
| 1B56SDS | SDS | 1/2 - 2 | C-1 | 5.6 | 5.2 | 5.95 | 11/32 | 1 5/16 | 3/32 | 5.6 | |
| 1B58SDS | SDS | 1/2 - 2 | C-2 | 5.8 | 5.4 | 6.15 | 11/32 | 1 5/16 | 3/32 | 5.9 | |
| 1B60SDS | SDS | 1/2 - 2 | C-2 | 6.0 | 5.6 | 6.35 | 11/32 | 1 5/16 | 3/32 | 6.2 | |
| 1B62SDS | SDS | 1/2 - 2 | C-2 | 6.2 | 5.8 | 6.55 | 11/32 | 1 5/16 | 3/32 | 6.5 | |
| 1B64SDS | SDS | 1/2 - 2 | C-2 | 6.4 | 6 | 6.75 | 11/32 | 1 5/16 | 3/32 | 6.8 | |
| 1B66SDS | SDS | 1/2 - 2 | C-2 | 6.6 | 6.2 | 6.95 | 11/32 | 1 5/16 | 3/32 | 7.2 | |
| 1B68SDS | SDS | 1/2 - 2 | C-3 | 6.8 | 6.4 | 7.15 | 11/32 | 1 5/16 | 3/32 | 7.5 | |
| 1B70SDS | SDS | 1/2 - 2 | C-3 | 7.0 | 6.6 | 7.35 | 11/32 | 1 5/16 | 3/32 | 7.8 | |
| 1B74SDS | SDS | 1/2 - 2 | C-3 | 7.4 | 7 | 7.75 | 17/32 | 1 5/16 | 7/32 | 8.8 | |
| 1B80SDS | SDS | 1/2 - 2 | C-3 | 8.0 | 7.6 | 8.35 | 17/32 | 1 5/16 | 7/32 | 9.6 | |
| 1B86SDS | SDS | 1/2 - 2 | C-3 | 8.6 | 8.2 | 8.95 | 17/32 | 1 5/16 | 7/32 | 10.0 | |
| 1B94SDS | SDS | 1/2 - 2 | C-3 | 9.4 | 9 | 9.75 | 17/32 | 1 5/16 | 7/32 | 10.5 | |
| 1B110SDS | SDS | 1/2 - 2 | C-3 | 11.0 | 10.6 | 11.35 | 17/32 | 1 5/16 | 7/32 | 11.0 | |
| 1B124SDS | SDS | 1/2 - 2 | C-3 | 12.4 | 12 | 12.75 | 17/32 | 1 5/16 | 7/32 | 12.0 | |
| 1B136SDS | SDS | 1/2 - 2 | C-3 | 13.6 | 13.2 | 13.95 | 17/32 | 1 5/16 | 7/32 | 14.0 | |
| 1B154SK | SK | 1/2 - 2 5/8 | C-3 | 15.4 | 15 | 15.75 | 21/32 | 1 15/16 | 9/32 | 16.0 | |
| 1B160SK | SK | 1/2 - 2 5/8 | C-3 | 16.0 | 15.6 | 16.35 | 21/32 | 1 15/16 | 9/32 | 16.6 | |
| 1B184SK | SK | 1/2 - 2 5/8 | C-3 | 18.4 | 18 | 18.75 | 21/32 | 1 15/16 | 9/32 | 18.0 | |
| 1B200SK | SK | 1/2 - 2 5/8 | C-3 | 20.0 | 19.6 | 20.35 | 21/32 | 1 15/16 | 9/32 | 20.0 | |
| 2 GROOVES, F = 1 3/4" | |||||||||||
| 2B34SH | SH | 1/2 - 1 5/8 | E-1 | 3.4 | 3 | 3.75 | 1 3/32 | 1 5/16 | 21/32 | 3.2 | |
| 2B36SH | SH | 1/2 - 1 5/8 | D-1 | 3.6 | 3.2 | 3.95 | 15/32 | 1 5/16 | 29/32 | 3.4 | |
| 2B38SH | SH | 1/2 - 1 5/8 | D-1 | 3.8 | 3.4 | 4.15 | 15/32 | 1 5/16 | 13/32 | 3.9 | |
| 2B40SH | SH | 1/2 - 1 5/8 | A-1 | 4 | 3.6 | 4.35 | 1/32 | 1 5/16 | 13/32 | 4.1 | |
| 2B42SH | SH | 1/2 - 1 5/8 | A-1 | 4.2 | 3.8 | 4.55 | 1/32 | 1 5/16 | 13/32 | 4.4 | |
| 2B44SH | SH | 1/2 - 1 5/8 | A-1 | 4.4 | 4 | 4.75 | 1/32 | 1 5/16 | 13/32 | 4.6 | |
| 2B46SDS | SDS | 1/2 - 2 | A-1 | 4.6 | 4.2 | 5.0 | 1/32 | 1 5/16 | 13/32 | 5.0 | |
| 2B48SDS | SDS | 1/2 - 2 | A-1 | 4.8 | 4.4 | 5.15 | 1/32 | 1 5/16 | 13/32 | 5.4 | |
| 2B50SDS | SDS | 1/2 - 2 | A-1 | 5.0 | 4.6 | 5.4 | 1/32 | 1 5/16 | 13/32 | 6.0 | |
| 2B52SDS | SDS | 1/2 - 2 | A-1 | 5.2 | 4.8 | 5.55 | 1/32 | 1 5/16 | 13/32 | 6.3 | |
| 2B54SDS | SDS | 1/2 - 2 | A-1 | 5.4 | 5 | 5.75 | 1/32 | 1 5/16 | 13/32 | 6.6 | |
| 2B56SDS | SDS | 1/2 - 2 | A-2 | 5.6 | 5.2 | 5.95 | 1/32 | 1 5/16 | 13/32 | 6.9 | |
| 2B58SDS | SDS | 1/2 - 2 | A-2 | 5.8 | 5.4 | 6.15 | 1/32 | 1 5/16 | 13/32 | 7.2 | |
| 2B60SDS | SDS | 1/2 - 2 | A-2 | 6 | 5.6 | 6.35 | 1/32 | 1 5/16 | 13/32 | 7.5 | |
| 2B62SDS | SDS | 1/2 - 2 | A-2 | 6.2 | 5.8 | 6.55 | 1/32 | 1 5/16 | 13/32 | 7.8 | |
| 2B64SDS | SDS | 1/2 - 2 | A-2 | 6.4 | 6 | 6.75 | 1/32 | 1 5/16 | 13/32 | 8.2 | |
| 2B66SDS | SDS | 1/2 - 2 | A-2 | 6.6 | 6.2 | 6.95 | 1/32 | 1 5/16 | 13/32 | 8.6 | |
| 2B68SDS | SDS | 1/2 - 2 | A-3 | 6.8 | 6.4 | 7.2 | 1/32 | 1 5/16 | 13/32 | 9.0 | |
| 2B70SDS | SK | 1/2 - 2 5/8 | D-1 | 7.0 | 6.6 | 7.4 | 11/32 | 1 15/16 | 5/32 | 9.3 | |
| 2B74SK | SK | 1/2 - 2 5/8 | D-3 | 7.4 | 7 | 7.8 | 11/32 | 1 15/16 | 5/32 | 10.6 | |
| 2B80SK | SK | 1/2" - 2 5/8" | D-3 | 8.0" | 7.6" | 8.35" | 11/32" | 1 15/16" | 5/32" | 11.0 | |
| 2B86SK | SK | 1/2 - 2 5/8 | D-3 | 8.6 | 8.2 | 9.0 | 11/32 | 1 15/16 | 5/32 | 11.6 | |
| 2B94SK | SK | 1/2 - 2 5/8 | D-3 | 9.4 | 9 | 9.75 | 11/32 | 1 15/16 | 5/32 | 13 | |
| 2B110SK | SK | 1/2 - 2 5/8 | D-3 | 11.0 | 10.6 | 11.35 | 11/32 | 1 15/16 | 5/32 | 14 | |
| 2B124SK | SK | 1/2 - 2 5/8 | D-3 | 12.4 | 12 | 12.75 | 11/32 | 1 15/16 | 5/32 | 18 | |
| 2B136SK | SK | 1/2 - 2 5/8 | D-3 | 13.6 | 13.2 | 13.95 | 11/32 | 1 15/16 | 5/32 | 20 | |
| 2B154SK | SK | 1/2 - 2 5/8 | D-3 | 15.4 | 15 | 15.75 | 11/32 | 1 15/16 | 5/32 | 23.0 | |
| 2B160SK | SK | 1/2 - 2 5/8 | D-3 | 16 | 15.6 | 16.35 | 11/32 | 1 15/16 | 5/32 | 24 | |
| 2B184SK | SK | 1/2 - 2 5/8 | D-3 | 18.4 | 18 | 18.75 | 11/32 | 1 15/16 | 5/32 | 29 | |
| 2B200SF | SF | 1/2 - 2 15/16 | D-3 | 20 | 19.6 | 20.35 | 15/32 | 2 1/16 | 5/32 | 33.0 | |
| 2B250SF | SF | 1/2 - 2 15/16 | D-3 | 25 | 24.6 | 25.35 | 15/32 | 2 1/16 | 5/32 | 41 | |
| 2B300SF | SF | 1/2 - 2 15/16 | D-3 | 30 | 29.6 | 30.35 | 15/32 | 2 1/16 | 5/32 | 51 | |
| 2B380SF | SF | 1/2 - 2 15/16 | D-3 | 38 | 37.6 | 38.35 | 15/32 | 2 1/16 | 5/32 | 64 | |
| 3 GROOVES, F = 2 | |||||||||||
| 3B34SH | SH | 1/2 - 1 5/8 | E-1 | 3.4 | 3 | 3.75 | 1 27/32 | 1 5/16 | 21/32 | 4.4 | |
| 3B36SH | SH | 1/2 - 1 5/8 | D-1 | 3.6 | 3.2 | 3.95 | 15/32 | 1 5/16 | 1 21/32 | 4.7 | |
| 3B38SH | SH | 1/2 - 1 5/8 | D-1 | 3.8 | 3.4 | 4.15 | 15/32 | 1 5/16 | 1 21/32 | 5.3 | |
| 3B40SH | SH | 1/2 - 1 5/8 | D-1 | 4 | 3.6 | 4.35 | 15/32 | 1 5/16 | 1 21/32 | 5.6 | |
| 3B42SH | SH | 1/2 - 1 5/8 | D-1 | 4.2 | 3.8 | 4.55 | 15/32 | 1 5/16 | 1 21/32 | 5.9 | |
| 3B44SH | SH | 1/2 - 1 5/8 | D-1 | 4.4 | 4 | 4.75 | 15/32 | 1 5/16 | 1 21/32 | 6.3 | |
| 3B46SD | SD | 1/2 - 2 | A-1 | 4.6 | 4.2 | 4.95 | 13/32 | 1 13/16 | 9/32 | 6.7 | |
| 3B48SD | SD | 1/2 - 2 | A-1 | 4.8 | 4.4 | 5.15 | 13/32 | 1 13/16 | 9/32 | 7.1 | |
| 3B50SD | SD | 1/2 - 2 | A-1 | 5 | 4.6 | 5.35 | 13/32 | 1 13/16 | 9/32 | 7.4 | |
| 3B52SD | SD | 1/2 - 2 | A-1 | 5.2 | 4.8 | 5.55 | 13/32 | 1 13/16 | 9/32 | 7.8 | |
| 3B54SD | SD | 1/2 - 2 | A-1 | 5.4 | 5 | 5.75 | 13/32 | 1 13/16 | 9/32 | 8.2 | |
| 3B56SD | SD | 1/2 - 2 | A-1 | 5.6 | 5.2 | 5.95 | 13/32 | 1 13/16 | 9/32 | 8.5 | |
| 3B58SD | SD | 1/2 - 2 | A-1 | 5.8 | 5.4 | 6.15 | 13/32 | 1 13/16 | 9/32 | 8.8 | |
| 3B60SD | SD | 1/2 - 2 | A-1 | 6 | 5.6 | 6.35 | 13/32 | 1 13/16 | 9/32 | 9.1 | |
| 3B62SD | SD | 1/2 - 2 | A-1 | 6.2 | 5.8 | 6.55 | 13/32 | 1 13/16 | 9/32 | 9.4 | |
| 3B64SD | SD | 1/2 - 2 | A-1 | 6.4 | 6 | 6.75 | 13/32 | 1 13/16 | 9/32 | 9.7 | |
| 3B66SD | SD | 1/2 - 2 | A-1 | 6.6 | 6.2 | 6.95 | 13/32 | 1 13/16 | 9/32 | 10 | |
| 3B68SD | SD | 1/2 - 2 | B-3 | 6.8 | 6.4 | 7.15 | 13/32 | 1 13/16 | 9/32 | 10.5 | |
| 3B70SK | SK | 1/2 - 2 5/8 | D-1 | 7 | 6.6 | 7.35 | 3/32 | 1 15/16 | 9/32 | 11 | |
| 3B74SK | SK | 1/2 - 2 5/8 | D-3 | 7.4 | 7 | 7.75 | 3/32 | 1 15/16 | 9/32 | 12 | |
| 3B80SK | SK | 1/2 - 2 5/8 | D-3 | 8 | 7.6 | 8.35 | 3/32 | 1 15/16 | 9/32 | 12.5 | |
| 3B86SK | SK | 1/2 - 2 5/8 | D-3 | 8.6 | 8.2 | 8.95 | 3/32 | 1 15/16 | 9/32 | 13 | |
| 3B94SK | SK | 1/2 - 2 5/8 | D-3 | 9.4 | 9 | 9.75 | 3/32 | 1 15/16 | 9/32 | 16 | |
| 3B110SK | SK | 1/2 - 2 5/8 | D-3 | 11 | 10.6 | 11.35 | 3/32 | 1 15/16 | 21/32 | 19 | |
| 3B124SK | SK | 1/2 - 2 5/8 | D-3 | 12.4 | 12 | 12.75 | 3/32 | 1 15/16 | 21/32 | 24 | |
| 3B136SK | SK | 1/2 - 2 5/8 | D-3 | 13.6 | 13.2 | 13.95 | 3/32 | 1 15/16 | 21/32 | 27 | |
| 3B154SK | SK | 1/2 - 2 5/8 | D-3 | 15.4 | 15 | 15.75 | 3/32 | 1 15/16 | 21/32 | 30 | |
| 3B160SK | SK | 1/2 - 2 5/8 | D-3 | 16 | 15.6 | 16.35 | 3/32 | 1 15/16 | 21/32 | 33 | |
| 3B184SK | SK | 1/2 - 2 5/8 | D-3 | 18.4 | 18 | 18.75 | 3/32 | 1 15/16 | 21/32 | 38 | |
| 3B200SF | SF | 1/2 - 2 15/16 | D-3 | 20 | 19.6 | 20.35 | 7/32 | 2 1/16 | 21/32 | 43 | |
| 3B250SF | SF | 1/2 - 2 15/16 | D-3 | 25 | 24.6 | 25.35 | 7/32 | 2 1/16 | 21/32 | 54 | |
| 3B300SF | SF | 1/2 - 2 15/16 | D-3 | 30 | 29.6 | 30.35 | 7/32 | 2 1/16 | 21/32 | 67 | |
| 3B380E | E | 7/8 - 3 1/2 | D-3 | 38 | 37.6 | 38.35 | 17/32 | 2 3/4 | 9/32 | 90 | |
| 4 GROOVES, F = 3 1/4" | |||||||||||
| 4B34SD | SD | 1/2 - 2 | E-1 | 3.4 | 3 | 3.75 | 2 15/32 | 1 13/16 | 1 1/32 | 5.5 | |
| 4B36SD | SD | 1/2 - 2 | E-1 | 3.6 | 3.2 | 3.95 | 2 15/32 | 1 13/16 | 1 1/32 | 5.8 | |
| 4B38SD | SD | 1/2 - 2 | E-1 | 3.8 | 3.4 | 4.15 | 2 15/32 | 1 13/16 | 1 1/32 | 6.2 | |
| 4B40SD | SD | 1/2 - 2 | E-1 | 4 | 3.6 | 4.35 | 2 3/32 | 1 13/16 | 21/32 | 6.6 | |
| 4B42SD | SD | 1/2 - 2 | E-1 | 4.2 | 3.8 | 4.55 | 2 3/32 | 1 13/16 | 21/32 | 6.9 | |
| 4B44SD | SD | 1/2 - 2 | E-1 | 4.4 | 4 | 4.75 | 2 3/32 | 1 13/16 | 21/32 | 7.2 | |
| 4B46SD | SD | 1/2 - 2 | A-1 | 4.6 | 4.2 | 4.95 | 21/32 | 1 13/16 | 25/32 | 7.6 | |
| 4B48SD | SD | 1/2 - 2 | A-1 | 4.8 | 4.4 | 5.15 | 21/32 | 1 13/16 | 25/32 | 8 | |
| 4B50SD | SD | 1/2 - 2 | A-1 | 5 | 4.6 | 5.35 | 21/32 | 1 13/16 | 25/32 | 8.4 | |
| 4B52SD | SD | 1/2 - 2 | A-1 | 5.2 | 4.8 | 5.55 | 21/32 | 1 13/16 | 25/32 | 8.8 | |
| 4B54SD | SD | 1/2 - 2 | A-1 | 5.4 | 5.4 | 5.75 | 21/32 | 1 13/16 | 25/32 | 9.2 | |
| 4B56SD | SD | 1/2 - 2 | A-1 | 5.6 | 5.2 | 5.95 | 21/32 | 1 13/16 | 25/32 | 9.6 | |
| 4B58SD | SD | 1/2 - 2 | A-1 | 5.8 | 5.4 | 6.15 | 21/32 | 1 13/16 | 25/32 | 10 | |
| 4B60SD | SD | 1/2 - 2 | A-1 | 6 | 5.6 | 6.35 | 21/32 | 1 13/16 | 25/32 | 10.4 | |
| 4B62SD | SD | 1/2 - 2 | A-1 | 6.2 | 5.8 | 6.55 | 21/32 | 1 13/16 | 25/32 | 10.8 | |
| 4B64SD | SD | 1/2 - 2 | A-1 | 6.4 | 6 | 6.75 | 21/32 | 1 13/16 | 25/32 | 12 | |
| 4B66SD | SD | 1/2 - 2 | A-1 | 6.6 | 6.2 | 6.95 | 21/32 | 1 13/16 | 25/32 | 12.4 | |
| 4B68SD | SD | 1/2 - 2 | A-3 | 6.8 | 6.4 | 7.15 | 21/32 | 1 13/16 | 25/32 | 13 | |
| 4B70SK | SK | 1/2 - 2 5/8 | A-1 | 7 | 6.6 | 7.35 | 7/32 | 1 15/16 | 1 3/32 | 13.5 | |
| 4B74SK | SK | 1/2 - 2 5/8 | A-3 | 7.4 | 7 | 7.75 | 7/32 | 1 15/16 | 1 3/32 | 14 | |
| 4B80SK | SK | 1/2 - 2 5/8 | A-3 | 8 | 7.6 | 8.35 | 7/32 | 1 15/16 | 1 3/32 | 15.5 | |
| 4B86SK | SK | 1/2 - 2 5/8 | A-3 | 8.6 | 8.2 | 8.95 | 7/32 | 1 15/16 | 1 3/32 | 17 | |
| 4B94SK | SK | 1/2 - 2 5/8 | A-3 | 9.4 | 9 | 9.75 | 7/32 | 1 15/16 | 1 3/32 | 19 | |
| 4B110SK | SK | 1/2 - 2 5/8 | A-3 | 11 | 10.6 | 11.35 | 7/32 | 1 15/16 | 1 3/32 | 22 | |
| 4B124SK | SK | 1/2 - 2 5/8 | A-3 | 12.4 | 12 | 12.75 | 7/32 | 1 15/16 | 1 3/32 | 20 | |
| 4B136SK | SK | 1/2 - 2 5/8 | A-3 | 13.6 | 13.2 | 13.95 | 7/32 | 1 15/16 | 1 3/32 | 34 | |
| 4B154SF | SF | 1/2 - 2 15/16 | A-3 | 15.4 | 15 | 15.75 | 5/32 | 2 1/16 | 1 1/32 | 39 | |
| 4B160SF | SF | 1/2 - 2 15/16 | A-3 | 16 | 15.6 | 16.35 | 5/32 | 2 1/16 | 1 1/32 | 42 | |
| 4B184SF | SF | 1/2 - 2 15/16 | A-3 | 18.4 | 18 | 18.75 | 5/32 | 2 1/16 | 1 1/32 | 47 | |
| 4B200SF | SF | 1/2 - 2 15/16 | A-3 | 20 | 19.6 | 20.35 | 5/32 | 2 1/16 | 1 1/32 | 51 | |
| 4B250E | E | 7/8 - 3 1/2 | D-3 | 25 | 24.6 | 25.35 | 5/32 | 2 3/4 | 21/32 | 73 | |
| 4B300E | E | 7/8 - 3 1/2 | D-3 | 30 | 29.6 | 30.35 | 5/32 | 2 3/4 | 21/32 | 86 | |
| 4B380E | E | 7/8 - 3 1/2 | D-3 | 38 | 37.6 | 38.35 | 5/32 | 2 3/4 | 21/32 | 109 | |
| 5 GROOVES, F = 4" | |||||||||||
| 5B34SD | SD | 1/2" - 2" | E-1 | 3.4" | 3.0" | 3.75" | 3 7/32" | 1 13/16" | 1 1/32" | 6.1 | |
| 5B36SD | SD | 1/2 - 2 | E-1 | 3.6 | 3.2 | 3.95 | 3 7/32 | 1 13/16 | 1 1/32 | 6.6 | |
| 5B38SD | SD | 1/2 - 2 | E-1 | 3.8 | 3.4 | 4.15 | 3 7/32 | 1 13/16 | 1 1/32 | 7.1 | |
| 5B40SD | SD | 1/2 - 2 | E-1 | 4.0 | 3.6 | 4.35 | 2 27/32 | 1 13/16 | 21/32 | 7.4 | |
| 5B42SD | SD | 1/2 - 2 | E-1 | 4.2 | 3.8 | 4.55 | 2 27/32 | 1 13/16 | 21/32 | 8.0 | |
| 5B44SD | SD | 1/2 - 2 | E-1 | 4.4 | 4 | 4.75 | 2 27/32 | 1 13/16 | 21/32 | 8.5 | |
| 5B46SD | SD | 1/2 - 2 | A-1 | 4.6 | 4.2 | 4.95 | 21/32 | 1 13/16 | 1 17/32 | 9.0 | |
| 5B48SD | SD | 1/2 - 2 | A-1 | 4.8 | 4.4 | 5.15 | 21/32 | 1 13/16 | 1 17/32 | 9.4 | |
| 5B50SD | SD | 1/2 - 2 | A-1 | 5.0 | 4.6 | 5.35 | 21/32 | 1 13/16 | 1 17/32 | 10.0 | |
| 5B52SD | SD | 1/2 - 2 | A-1 | 5.2 | 4.8 | 5.55 | 21/32 | 1 13/16 | 1 17/32 | 10.4 | |
| 5B54SK | SK | 1/2 - 2 5/8 | A-1 | 5.4 | 5 | 5.75 | 17/32 | 1 15/16 | 1 17/32 | 10.8 | |
| 5B56SK | SK | 1/2 - 2 5/8 | A-1 | 5.6 | 5.2 | 5.95 | 17/32 | 1 15/16 | 1 17/32 | 11.3 | |
| 5B58SK | SK | 1/2 - 2 5/8 | A-1 | 5.8 | 5.4 | 6.15 | 17/32 | 1 15/16 | 1 17/32 | 12.0 | |
| 5B60SK | SK | 1/2 - 2 5/8 | A-1 | 6.0 | 5.6 | 6.35 | 17/32 | 1 15/16 | 1 17/32 | 14.0 | |
| 5B62SK | SK | 1/2 - 2 5/8 | A-1 | 6.2 | 5.8 | 6.55 | 17/32 | 1 15/16 | 1 17/32 | 15.0 | |
| 5B64SK | SK | 1/2 - 2 5/8 | A-1 | 6.4 | 6 | 6.75 | 17/32 | 1 15/16 | 1 17/32 | 16.0 | |
| 5B66SK | SK | 1/2 - 2 5/8 | A-1 | 6.6 | 6.2 | 6.95 | 17/32 | 1 15/16 | 1 17/32 | 17.0 | |
| 5B68SK | SK | 1/2 - 2 5/8 | A-1 | 6.8 | 6.4 | 7.15 | 17/32 | 1 15/16 | 1 17/32 | 18.0 | |
| 5B70SF | SF | 1/2 - 2 15/16 | A-1 | 7.0 | 6.6 | 7.35 | 15/32 | 2 1/16 | 1 15/32 | 19.0 | |
| 5B74SF | SF | 1/2 - 2 15/16 | A-2 | 7.4 | 7 | 7.75 | 15/32 | 2 1/16 | 1 15/32 | 20.0 | |
| 5B80SF | SF | 1/2 - 2 15/16 | A-2 | 8.0 | 7.6 | 8.35 | 15/32 | 2 1/16 | 1 15/32 | 21.0 | |
| 5B86SF | SF | 1/2 - 2 15/16 | A-2 | 8.6 | 8.2 | 8.95 | 15/32 | 2 1/16 | 1 15/32 | 22.0 | |
| 5B94SF | SF | 1/2 - 2 15/16 | A-3 | 9.4 | 9 | 9.75 | 15/32 | 2 1/16 | 1 15/32 | 24.0 | |
| 5B110SF | SF | 1/2 - 2 15/16 | A-3 | 11.0 | 10.6 | 11.35 | 15/32 | 2 1/16 | 1 15/32 | 29.0 | |
| 5B124SF | SF | 1/2 - 2 15/16 | A-3 | 12.4 | 12 | 12.75 | 15/32 | 2 1/16 | 1 15/32 | 34.0 | |
| 5B136SF | SF | 1/2 - 2 15/16 | A-3 | 13.6 | 13.2 | 13.95 | 15/32 | 2 1/16 | 1 15/32 | 38.0 | |
| 5B154SF | SF | 1/2 - 2 15/16 | A-3 | 15.4 | 15 | 15.75 | 15/32 | 2 1/16 | 1 15/32 | 46.0 | |
| 5B160SF | SF | 1/2 - 2 15/16 | A-3 | 16.0 | 15.6 | 16.35 | 15/32 | 2 1/16 | 1 15/32 | 49.0 | |
| 5B184SF | SF | 1/2 - 2 15/16 | A-3 | 18.4 | 18 | 18.75 | 15/32 | 2 1/16 | 1 15/32 | 55.0 | |
| 5B200SE | E | 7/8 - 3 1/2 | A-3 | 20.0 | 19.6 | 20.35 | 3/32 | 2 3/4 | 1 5/32 | 65.0 | |
| 5B250SE | E | 7/8 - 3 1/2 | A-3 | 25.0 | 24.6 | 25.35 | 3/32 | 2 3/4 | 1 5/32 | 86.0 | |
| 5B300SE | E | 7/8 - 3 1/2 | A-3 | 30.0 | 29.6 | 30.35 | 3/32 | 2 3/4 | 1 5/32 | 102 | |
| 5B380SE | E | 7/8 - 3 1/2 | A-3 | 38.0 | 37.6 | 38.35 | 3/32 | 2 3/4 | 1 5/32 | 132 | |
| 6 GROOVES, F = 4 3/4" | |||||||||||
| 6B34SD | SD | 1/2" - 2" | E-1 | 3.4" | 3.0" | 3.75" | 3 31/32" | 1 13/16" | 1 1/32" | 6.7 | |
| 6B36SD | SD | 1/2 - 2 | E-1 | 3.6 | 3.2 | 3.95 | 3 31/32 | 1 13/16 | 1 1/32 | 7.4 | |
| 6B38SD | SD | 1/2 - 2 | E-1 | 3.8 | 3.4 | 4.15 | 3 31/32 | 1 13/16 | 1 1/32 | 8 | |
| 6B40SD | SD | 1/2 - 2 | E-1 | 4.0 | 3.6 | 4.35 | 3 19/32 | 1 13/16 | 21/32 | 8.4 | |
| 6B42SD | SD | 1/2 - 2 | E-1 | 4.2 | 3.8 | 4.55 | 3 19/32 | 1 13/16 | 21/32 | 9 | |
| 6B44SD | SD | 1/2 - 2 | E-1 | 4.4 | 4 | 4.75 | 3 19/32 | 1 13/16 | 21/32 | 9.7 | |
| 6B46SD | SD | 1/2 - 2 | A-1 | 4.6 | 4.2 | 4.95 | 21/32 | 1 13/16 | 2 9/32 | 10.1 | |
| 6B48SD | SD | 1/2 - 2 | A-1 | 4.8 | 4.4 | 5.15 | 21/32 | 1 13/16 | 2 9/32 | 10.6 | |
| 6B50SD | SD | 1/2 - 2 | A-1 | 5.0 | 4.6 | 5.35 | 21/32 | 1 13/16 | 2 9/32 | 11 | |
| 6B52SD | SD | 1/2 - 2 | A-1 | 5.2 | 4.8 | 5.55 | 21/32 | 1 13/16 | 2 9/32 | 12.0 | |
| 6B54SK | SK | 1/2 - 2 5/8 | A-1 | 5.4 | 5 | 5.75 | 17/32 | 1 15/16 | 2 9/32 | 13 | |
| 6B56SK | SK | 1/2 - 2 5/8 | A-1 | 5.6 | 5.2 | 5.95 | 17/32 | 1 15/16 | 2 9/32 | 14.0 | |
| 6B58SK | SK | 1/2 - 2 5/8 | A-1 | 5.8 | 5.4 | 6.15 | 17/32 | 1 15/16 | 2 9/32 | 14.6 | |
| 6B60SK | SK | 1/2 - 2 5/8 | A-1 | 6.0 | 5.6 | 6.35 | 17/32 | 1 15/16 | 2 9/32 | 15 | |
| 6B62SK | SK | 1/2 - 2 5/8 | A-1 | 6.2 | 5.8 | 6.55 | 17/32 | 1 15/16 | 2 9/32 | 16.0 | |
| 6B64SK | SK | 1/2 - 2 5/8 | A-1 | 6.4 | 6 | 6.75 | 17/32 | 1 15/16 | 2 9/32 | 17 | |
| 6B66SK | SK | 1/2 - 2 5/8 | A-1 | 6.6 | 6.2 | 6.95 | 17/32 | 1 15/16 | 2 9/32 | 18.0 | |
| 6B68SK | SK | 1/2 - 2 5/8 | A-1 | 6.8 | 6.4 | 7.15 | 17/32 | 1 15/16 | 2 9/32 | 19 | |
| 6B70SF | SF | 1/2 - 2 15/16 | A-1 | 7.0 | 6.6 | 7.35 | 27/32 | 2 1/16 | 1 27/32 | 20 | |
| 6B74SF | SF | 1/2 - 2 15/16 | A-1 | 7.4 | 7.4 | 7.75 | 27/32 | 2 1/16 | 1 27/32 | 22.0 | |
| 6B80SF | SF | 1/2 - 2 15/16 | A-2 | 8 | 7.6 | 8.35 | 27/32 | 2 1/16 | 1 27/32 | 24 | |
| 6B86SF | SF | 1/2 - 2 15/16 | A-2 | 8.6 | 8.2 | 8.95 | 27/32 | 2 1/16 | 1 27/32 | 26.0 | |
| 6B94SF | SF | 1/2 - 2 15/16 | A-3 | 9.4 | 9 | 9.75 | 27/32 | 2 1/16 | 1 27/32 | 27 | |
| 6B110SF | SF | 1/2 - 2 15/16 | A-3 | 11.0 | 10.6 | 11.35 | 27/32 | 2 1/16 | 1 27/32 | 32 | |
| 6B124SF | SF | 1/2 - 2 15/16 | A-3 | 12.4 | 12 | 12.75 | 27/32 | 2 1/16 | 1 27/32 | 39.0 | |
| 6B136SF | SF | 1/2 - 2 15/16 | A-3 | 13.6 | 13.2 | 13.95 | 27/32 | 2 1/16 | 1 27/32 | 44 | |
| 6B154SF | SF | 1/2 - 2 15/16 | A-3 | 15.4 | 15 | 15.75 | 27/32 | 2 1/16 | 1 27/32 | 50.0 | |
| 6B160SF | SF | 1/2 - 2 15/16 | A-3 | 16 | 15.6 | 16.35 | 27/32 | 2 1/16 | 1 27/32 | 54 | |
| 6B184SF | SF | 1/2 - 2 15/16 | A-3 | 18.4 | 18 | 18.75 | 27/32 | 2 1/16 | 1 27/32 | 62 | |
| 6B200E | E | 7/8 - 3 1/2 | A-3 | 20 | 19.6 | 20.35 | 7/32 | 2 3/4 | 1 25/32 | 74.0 | |
| 6B250E | E | 7/8 - 3 1/2 | A-3 | 25 | 24.6 | 25.35 | 7/32 | 2 3/4 | 1 25/32 | 96 | |
| 6B300E | E | 7/8 - 3 1/2 | A-3 | 30 | 29.6 | 30.35 | 7/32 | 2 3/4 | 1 25/32 | 119.0 | |
| 6B380E | E | 7/8 - 3 1/2 | B-3 | 38 | 37.6 | 38.35 | 7/32 | 2 3/4 | 1 25/32 | 134 | |
| 8 GROOVES, F = 6 1/4" | |||||||||||
| 8B54SK | SK | 1/2 - 2 5/8 | A-1 | 5.4 | 5 | 5.75 | 1 1/32 | 1 15/16 | 3 9/32 | 15 | |
| 8B56SK | SK | 1/2 - 2 5/8 | A-1 | 5.6 | 5.2 | 5.95 | 1 1/32 | 1 15/16 | 3 9/32 | 16.0 | |
| 8B60SF | SF | 1/2 - 2 15/16 | A-1 | 6 | 5.6 | 6.35 | 31/32 | 2 1/16 | 3 7/32 | 20 | |
| 8B64SF | SF | 1/2 - 2 15/16 | A-1 | 6.4 | 6 | 6.75 | 31/32 | 2 1/16 | 3 7/32 | 23 | |
| 8B68SF | SF | 1/2 - 2 15/16 | A-1 | 6.8 | 6.4 | 7.15 | 31/32 | 2 1/16 | 3 7/32 | 25 | |
| 8B74SF | SF | 1/2 - 2 15/16 | A-1 | 7.4 | 7 | 7.75 | 31/32 | 2 1/16 | 3 7/32 | 28.0 | |
| 8B86E | E | 7/8 - 3 1/2 | A-1 | 8.6 | 8.2 | 8.95 | 1 7/32 | 2 3/4 | 2 9/32 | 40 | |
| 8B94E | E | 7/8 - 3 1/2 | A-2 | 9.4 | 9 | 9.75 | 1 7/32 | 2 3/4 | 2 9/32 | 43 | |
| 8B110E | E | 7/8 - 3 1/2 | A-3 | 11 | 10.6 | 11.35 | 1 7/32 | 2 3/4 | 2 9/32 | 49 | |
| 8B124E | E | 7/8 - 3 1/2 | A-3 | 12.4 | 12 | 12.75 | 1 7/32 | 2 3/4 | 2 9/32 | 56.0 | |
| 8B154E | E | 7/8 - 3 1/2 | A-3 | 15.4 | 15 | 15.75 | 1 7/32 | 2 3/4 | 2 9/32 | 69 | |
| 8B184F | F | 1 - 4 | D-3 | 18.4 | 18 | 18.75 | 1/32 | 3 3/4 | 2 17/32 | 91 | |
| 8B200F | F | 1 - 4 | D-3 | 20 | 19.6 | 20.35 | 1/32 | 3 3/4 | 2 17/32 | 98 | |
| 8B250F | F | 1 - 4 | D-3 | 25 | 24.6 | 25.35 | 1/32 | 3 3/4 | 2 17/32 | 121.0 | |
| 8B300F | F | 1 - 4 | D-3 | 30 | 29.6 | 30.35 | 1/32 | 3 3/4 | 2 17/32 | 148 | |
| 8B380F | F | 1 - 4 | D-3 | 38.0 | 37.6 | 38.35 | 1/32 | 3 3/4 | 2 17/32 | 194 | |
| 10 GROOVES, F = 7 3/4" | |||||||||||
| 10B54SK | SK | 1/2 - 2 5/8 | A-1 | 5.4 | 5 | 5.75 | 1 25/32 | 1 15/16 | 4 1/32 | 18 | |
| 10B56SK | SK | 1/2 - 2 5/8 | A-1 | 5.6 | 5.2 | 5.95 | 1 25/32 | 1 15/16 | 4 1/32 | 20.0 | |
| 10B60SF | SF | 1/2 - 2 15/16 | A-1 | 6 | 5.6 | 6.35 | 1 23/32 | 2 1/16 | 3 31/32 | 24 | |
| 10B64SF | SF | 1/2 - 2 15/16 | A-1 | 6.4 | 6 | 6.75 | 1 23/32 | 2 1/16 | 3 31/32 | 26 | |
| 10B68SF | SF | 1/2 - 2 15/16 | A-1 | 6.8 | 6.4 | 7.15 | 1 23/32 | 2 1/16 | 3 31/32 | 28 | |
| 10B74SF | SF | 1/2 - 2 15/16 | A-1 | 7.4 | 7 | 7.75 | 1 23/32 | 2 1/16 | 3 31/32 | 32.0 | |
| 10B86E | E | 7/8 - 3 1/2 | A-1 | 8.6 | 8.2 | 8.95 | 1 31/32 | 2 3/4 | 3 1/32 | 42 | |
| 10B94E | E | 7/8 - 3 1/2 | A-2 | 9.4 | 9 | 9.75 | 1 31/32 | 2 3/4 | 3 1/32 | 48 | |
| 10B110E | E | 7/8 - 3 1/2 | A-3 | 11 | 10.6 | 11.35 | 1 31/32 | 2 3/4 | 3 1/32 | 56 | |
| 10B124E | E | 7/8 - 3 1/2 | A-3 | 12.4 | 12 | 12.75 | 1 31/32 | 2 3/4 | 3 1/32 | 64.0 | |
| 10B154F | F | 1 - 4 | A-3 | 15.4 | 15 | 15.75 | 5/8 | 3 3/4 | 3 9/32 | 88 | |
| 10B184F | F | 1 - 4 | A-3 | 18.4 | 18 | 18.75 | 5/8 | 3 3/4 | 3 9/32 | 103 | |
| 10B200F | F | 1 - 4 | A-3 | 20 | 19.6 | 20.35 | 5/8 | 3 3/4 | 3 9/32 | 112 | |
| 10B250F | F | 1 - 4 | A-3 | 25 | 24.6 | 25.35 | 5/8 | 3 3/4 | 3 9/32 | 142.0 | |
| 10B300F | F | 1 - 4 | A-3 | 30 | 29.6 | 30.35 | 5/8 | 3 3/4 | 3 9/32 | 174 | |
| 10B380J | J | 1 1/2 - 4 1/2 | A-3 | 38.0 | 37.6 | 38.35 | 1/8 | 4 5/8 | 3 | 230 | |
