Gripbelt Sheaves with Split Taper Bushings |
TC |
|
For Use with All
"C" Section Belts |
|
|
| Standard Keyseats |
|
|
|
|
| Table No.1 |
|
|
| Bore Range |
Keyseat |
|
|
| 3/4" ！ 7/8" |
3/16" x 3/32" |
|
|
| 1 5/16 ！1 1/4 |
1/4 x 1/8 |
|
|
| 1 5/16 ！1 3/8 |
5/16 x 5/32 |
|
|
| 1 7/16 ！1 3/4 |
3/8 x 3/16 |
|
|
| 1 13/16 ！ 2 1/4 |
1/2 x 1/4 |
|
|
| 2 5/16 ！2 11/16 |
5/8 x 5/16 |
|
|
|
|
| Table No.2 |
|
| Part No. |
Dimensions |
Bore Range |
Wt. lbs. |
|
| M |
L |
G |
X |
E |
T |
U |
D |
H |
|
| Q1 |
2 25/32" |
2 1/2" |
3/4" |
1 3/4" |
9/32" |
1 31/32" |
17/32" |
2 7/8" |
4 1/8" |
3/4" ！ 2 11/16" |
3 1/2 |
|
|
3 25/32" |
3 1/2" |
3/4" |
2 3/4" |
9/32" |
2 31/32" |
17/32" |
2 7/8" |
4 1/8" |
1" ！ 2 5/8" |
4 1/2 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

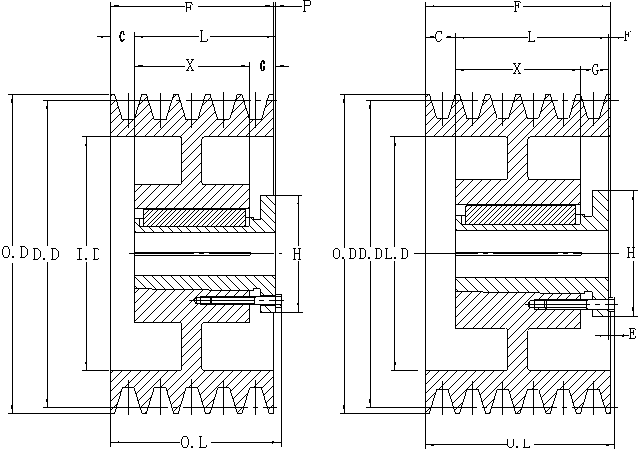

TYPE 1 |
|
|
TYPE 2 |
|
|
TYPE 3 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
TYPE 4 |
|
|
TYPE 5 |
|
|
| Table No.3 |
Specification！Stock "TC" Sheaves |
|
| DIAMETERS |
1 GROOVE, F = 1 1/4" |
| Dautum "C" |
Outside |
Inside |
part Number |
Type |
Dimensions |
Wt. Less Bush. |
| Sheave |
Bushing |
O.L. |
L |
P |
C |
H |
G |
X |
E |
| 7.0" |
7.40" |
！ |
1TC70 |
Q1 |
1-Sol. |
2 25/32" |
2 1/2" |
3/4" |
1/2" |
4 1/8" |
！ |
！ |
9/32" |
9.3 |
| 7.2 |
7.60 |
！ |
1TC72 |
Q1 |
1-Web |
2 25/32 |
2 1/2 |
3/4 |
1/2 |
4 1/8 |
！ |
！ |
9/32 |
10.1 |
| 7.4 |
7.80 |
！ |
1TC74 |
Q1 |
1-Web |
2 25/32 |
2 1/2 |
3/4 |
1/2 |
4 1/8 |
！ |
！ |
9/32 |
10.8 |
| 7.6 |
8.00 |
！ |
1TC76 |
Q1 |
1-Web |
2 25/32 |
2 1/2 |
3/4 |
1/2 |
4 1/8 |
！ |
！ |
9/32 |
11.4 |
| 7.8 |
8.20 |
6" |
1TC78 |
Q1 |
1-Web |
2 25/32 |
2 1/2 |
3/4 |
1/2 |
4 1/8 |
！ |
！ |
9/32 |
9.8 |
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 8.0 |
8.40 |
6 1/4 |
1TC80 |
Q1 |
1-Web |
2 25/32 |
2 1/2 |
3/4 |
1/2 |
4 1/8 |
！ |
！ |
9/32 |
9.9 |
| 8.2 |
8.60 |
6 7/16 |
1TC82 |
Q1 |
1-Web |
2 25/32 |
2 1/2 |
3/4 |
1/2 |
4 1/8 |
！ |
！ |
9/32 |
10.1 |
| 8.4 |
8.80 |
6 5/8 |
1TC84 |
Q1 |
1-Web |
2 25/32 |
2 1/2 |
3/4 |
1/2 |
4 1/8 |
！ |
！ |
9/32 |
11.0 |
| 8.6 |
9.00 |
6 13/16 |
1TC86 |
Q1 |
1-Web |
2 25/32 |
2 1/2 |
3/4 |
1/2 |
4 1/8 |
！ |
！ |
9/32 |
10.6 |
| 8.8 |
9.20 |
7 |
1TC88 |
Q1 |
1-Web |
2 25/32 |
2 1/2 |
3/4 |
1/2 |
4 1/8 |
！ |
！ |
9/32 |
11.6 |
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 9.0 |
9.40 |
7 1/4 |
1TC90 |
Q1 |
1-Web |
2 25/32 |
2 1/2 |
3/4 |
1/2 |
4 1/8 |
！ |
！ |
9/32 |
11.4 |
| 9.2 |
9.60 |
7 7/16 |
1TC92 |
Q1 |
1-Web |
2 25/32 |
2 1/2 |
3/4 |
1/2 |
4 1/8 |
！ |
！ |
9/32 |
12.6 |
| 9.4 |
9.80 |
7 5/8 |
1TC94 |
Q1 |
3-Arm |
2 25/32 |
2 1/2 |
1 |
1/4 |
4 1/8 |
3/4" |
1 3/4" |
9/32 |
14.8 |
| 9.6 |
10.00 |
7 13/16 |
1TC96 |
Q1 |
3-Arm |
2 25/32 |
2 1/2 |
1 |
1/4 |
4 1/8 |
3/4 |
1 3/4 |
9/32 |
15.8 |
| 9.8 |
10.20 |
8 |
1TC98 |
Q1 |
3-Arm |
2 25/32 |
2 1/2 |
1 |
1/4 |
4 1/8 |
3/4 |
1 3/4 |
9/32 |
15.9 |
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 10.0 |
10.40 |
8 1/4 |
1TC100 |
Q1 |
3-Arm |
2 25/32 |
2 1/2 |
1 |
1/4 |
4 1/8 |
3/4 |
1 3/4 |
9/32 |
16.8 |
| 10.2 |
10.60 |
8 7/16 |
1TC102 |
Q1 |
3-Arm |
2 25/32 |
2 1/2 |
1 |
1/4 |
4 1/8 |
3/4 |
1 3/4 |
9/32 |
16.1 |
| 10.6 |
11.00 |
8 13/16 |
1TC106 |
Q1 |
3-Arm |
2 25/32 |
2 1/2 |
1 |
1/4 |
4 1/8 |
3/4 |
1 3/4 |
9/32 |
17.3 |
| 11.0 |
11.40 |
9 1/4 |
1TC110 |
Q1 |
3-Arm |
2 25/32 |
2 1/2 |
1 |
1/4 |
4 1/8 |
3/4 |
1 3/4 |
9/32 |
17.5 |
| 11.4 |
11.80 |
9 5/8 |
1TC114 |
Q1 |
3-Arm |
2 25/32 |
2 1/2 |
1 |
1/4 |
4 1/8 |
3/4 |
1 3/4 |
9/32 |
18.6 |
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 12.0 |
12.40 |
10 1/4 |
1TC120 |
Q1 |
3-Arm |
2 25/32 |
2 1/2 |
1 |
1/4 |
4 1/8 |
3/4 |
1 3/4 |
9/32 |
19.5 |
| 13.0 |
13.40 |
11 1/4 |
1TC130 |
Q1 |
3-Arm |
2 25/32 |
2 1/2 |
1 |
1/4 |
4 1/8 |
3/4 |
1 3/4 |
9/32 |
22.8 |
| 16.0 |
16.40 |
14 1/4 |
1TC160 |
Q1 |
3-Arm |
2 25/32 |
2 1/2 |
1 |
1/4 |
4 1/8 |
3/4 |
1 3/4 |
9/32 |
28.5 |
| 20.0 |
20.40 |
18 1/4 |
1TC200 |
Q1 |
3-Arm |
2 25/32 |
2 1/2 |
1 |
1/4 |
4 1/8 |
3/4 |
1 3/4 |
9/32 |
37.8 |
| 24.0 |
24.40 |
22 1/4 |
1TC240 |
Q1 |
3-Arm |
2 25/32 |
2 1/2 |
1 |
1/4 |
4 1/8 |
3/4 |
1 3/4 |
9/32 |
49.5 |
| Table No.4 |
|
|
| DIAMETERS |
1 GROOVE, F = 1 1/4" |
| Dautum "C" |
Outside |
Inside |
part Number |
Type |
Dimensions |
Wt. Less Bush. |
| Sheave |
Bushing |
O.L. |
L |
P |
C |
H |
G |
X |
E |
| 7.0" |
7.40" |
5 1/4" |
2TC70 |
Q1 |
2-Web |
3 1/32" |
2 1/2" |
1/2" |
1/4" |
4 1/8" |
3/4" |
1 3/4" |
9/32" |
14.0 |
| 7.2 |
7.60 |
5 7/16 |
2TC72 |
Q1 |
2-Web |
3 1/32 |
2 1/2 |
1/2 |
1/4 |
4 1/8 |
3/4 |
1 3/4 |
9/32 |
15.4 |
| 7.4 |
7.80 |
5 5/8 |
2TC74 |
Q1 |
2-Web |
3 1/32 |
2 1/2 |
1/2 |
1/4 |
4 1/8 |
3/4" |
1 3/4 |
9/32 |
16.6 |
| 7.6 |
8.00 |
5 13/16 |
2TC76 |
Q1 |
2-Web |
3 1/32 |
2 1/2 |
1/2 |
1/4 |
4 1/8 |
3/4 |
1 3/4 |
9/32 |
17.6 |
| 7.8 |
8.20 |
6 |
2TC78 |
Q1 |
2-Web |
3 1/32 |
2 1/2 |
1/2 |
1/4 |
4 1/8 |
3/4" |
1 3/4 |
9/32 |
14.1 |
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 8.0 |
8.40 |
6 1/4 |
2TC80 |
Q1 |
2-Web |
3 1/32 |
2 1/2 |
1/2 |
1/4 |
4 1/8 |
3/4" |
1 3/4 |
9/32 |
14.3 |
| 8.2 |
8.60 |
6 7/16 |
2TC82 |
Q1 |
2-Web |
3 1/32 |
2 1/2 |
1/2 |
1/4 |
4 1/8 |
3/4 |
1 3/4 |
9/32 |
14.8 |
| 8.4 |
8.80 |
6 5/8 |
2TC84 |
Q1 |
2-Web |
3 1/32 |
2 1/2 |
1/2 |
1/4 |
4 1/8 |
3/4" |
1 3/4 |
9/32 |
16.4 |
| 8.6 |
9.00 |
6 13/16 |
2TC86 |
Q1 |
2-Web |
3 1/32 |
2 1/2 |
1/2 |
1/4 |
4 1/8 |
3/4 |
1 3/4 |
9/32 |
16.1 |
| 8.8 |
9.20 |
7 |
2TC88 |
Q1 |
2-Web |
3 1/32 |
2 1/2 |
1/2 |
1/4 |
4 1/8 |
3/4" |
1 3/4 |
9/32 |
17.1 |
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 9.0 |
9.40 |
7 1/4 |
2TC90 |
Q1 |
2-Web |
3 1/32 |
2 1/2 |
1/2 |
1/4 |
4 1/8 |
3/4" |
1 3/4 |
9/32 |
16.8 |
| 9.2 |
9.60 |
7 7/16 |
2TC92 |
Q1 |
2-Web |
3 1/32 |
2 1/2 |
1/2 |
1/4 |
4 1/8 |
3/4 |
1 3/4 |
9/32 |
18.4 |
| 9.4 |
9.80 |
7 5/8 |
2TC94 |
Q1 |
2-Arm |
3 1/32 |
2 1/2 |
1/2 |
1/4 |
4 1/8 |
3/4" |
1 3/4 |
9/32 |
19.1 |
| 9.6 |
10.00 |
7 13/16 |
2TC96 |
Q1 |
2-Arm |
3 1/32 |
2 1/2 |
1/2 |
1/4 |
4 1/8 |
3/4 |
1 3/4 |
9/32 |
20.6 |
| 9.8 |
10.20 |
8 |
2TC98 |
Q1 |
2-Arm |
3 1/32 |
2 1/2 |
1/2 |
1/4 |
4 1/8 |
3/4 |
1 3/4 |
9/32 |
19.5 |
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 10.0 |
10.40 |
8 1/4 |
2TC100 |
Q1 |
2-Arm |
3 1/32 |
2 1/2 |
1/2 |
1/4 |
4 1/8 |
3/4 |
1 3/4 |
9/32 |
22.0 |
| 10.2 |
10.60 |
8 7/16 |
2TC102 |
Q1 |
2-Arm |
3 1/32 |
2 1/2 |
1/2 |
1/4 |
4 1/8 |
3/4 |
1 3/4 |
9/32 |
21.3 |
| 10.6 |
11.00 |
8 13/16 |
2TC106 |
Q1 |
2-Arm |
3 1/32 |
2 1/2 |
1/2 |
1/4 |
4 1/8 |
3/4 |
1 3/4 |
9/32 |
22.4 |
| 11.0 |
11.40 |
9 1/4 |
2TC110 |
Q1 |
2-Arm |
3 1/32 |
2 1/2 |
1/2 |
1/4 |
4 1/8 |
3/4 |
1 3/4 |
9/32 |
22.4 |
| 11.4 |
11.80 |
9 5/8 |
2TC114 |
Q1 |
2-Arm |
3 1/32 |
2 1/2 |
1/2 |
1/4 |
4 1/8 |
3/4 |
1 3/4 |
9/32 |
23.5 |
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 12.0 |
12.40 |
10 1/4 |
2TC120 |
Q1 |
2-Arm |
3 1/32 |
2 1/2 |
1/2 |
1/4 |
4 1/8 |
3/4 |
1 3/4 |
9/32 |
24.9 |
| 13.0 |
13.40 |
11 1/4 |
2TC130 |
Q1 |
2-Arm |
3 1/32 |
2 1/2 |
1/2 |
1/4 |
4 1/8 |
3/4 |
1 3/4 |
9/32 |
28.6 |
| 16.0 |
16.40 |
14 1/4 |
2TC160 |
Q1 |
2-Arm |
3 1/32 |
2 1/2 |
1/2 |
1/4 |
4 1/8 |
3/4 |
1 3/4 |
9/32 |
36.0 |
| 20.0 |
20.40 |
18 1/4 |
2TC200 |
Q1 |
2-Arm |
3 1/32 |
2 1/2 |
1/2 |
1/4 |
4 1/8 |
3/4 |
1 3/4 |
9/32 |
46.0 |
| 24.0 |
24.40 |
22 1/4 |
2TC240 |
Q1 |
2-Arm |
3 1/32 |
2 1/2 |
1/2 |
1/4 |
4 1/8 |
3/4 |
1 3/4 |
9/32 |
59.5 |
|
|
| Table No.5 |
|
| DIAMETERS |
1 GROOVE, F = 1 1/4" |
| Dautum "C" |
Outside |
Inside |
part Number |
Type |
Dimensions |
Wt. Less Bush. |
| Sheave |
Bushing |
O.L. |
L |
P |
C |
H |
G |
X |
E |
| 7.0" |
7.40" |
5 1/4" |
3TC70 |
Q1 |
2-Web |
3 17/32" |
2 1/2" |
0 |
3/4" |
4 1/8" |
3/4" |
1 3/4" |
9/32" |
16.8 |
| 7.2 |
7.60 |
5 7/16 |
3TC72 |
Q1 |
2-Web |
3 17/32 |
2 1/2 |
0 |
3/4 |
4 1/8 |
3/4 |
1 3/4 |
9/32 |
18.0 |
| 7.4 |
7.80 |
5 5/8 |
3TC74 |
Q1 |
2-Web |
3 17/32 |
2 1/2 |
0 |
3/4 |
4 1/8 |
3/4" |
1 3/4 |
9/32 |
19.1 |
| 7.6 |
8.00 |
5 13/16 |
3TC76 |
Q1 |
2-Web |
3 17/32 |
2 1/2 |
0 |
3/4 |
4 1/8 |
3/4 |
1 3/4 |
9/32 |
21.3 |
| 7.8 |
8.20 |
6 |
3TC78 |
Q1 |
2-Web |
3 17/32 |
2 1/2 |
0 |
3/4 |
4 1/8 |
3/4" |
1 3/4 |
9/32 |
17.4 |
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 8.0 |
8.40 |
6 1/4 |
3TC80 |
Q1 |
2-Web |
3 17/32 |
2 1/2 |
0 |
3/4 |
4 1/8 |
3/4" |
1 3/4 |
9/32 |
17.8 |
| 8.2 |
8.60 |
6 7/16 |
3TC82 |
Q1 |
2-Web |
3 17/32 |
2 1/2 |
0 |
3/4 |
4 1/8 |
3/4 |
1 3/4 |
9/32 |
17.9 |
| 8.4 |
8.80 |
6 5/8 |
3TC84 |
Q1 |
2-Web |
3 17/32 |
2 1/2 |
0 |
3/4 |
4 1/8 |
3/4" |
1 3/4 |
9/32 |
20.4 |
| 8.6 |
9.00 |
6 13/16 |
3TC86 |
Q1 |
2-Web |
3 17/32 |
2 1/2 |
0 |
3/4 |
4 1/8 |
3/4 |
1 3/4 |
9/32 |
19.5 |
| 8.8 |
9.20 |
7 |
3TC88 |
Q1 |
2-Web |
3 17/32 |
2 1/2 |
0 |
3/4 |
4 1/8 |
3/4" |
1 3/4 |
9/32 |
22.5 |
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 9.0 |
9.40 |
7 1/4 |
3TC90 |
Q1 |
2-Web |
3 17/32 |
2 1/2 |
0 |
3/4 |
4 1/8 |
3/4" |
1 3/4 |
9/32 |
20.4 |
| 9.2 |
9.60 |
7 7/16 |
3TC92 |
Q1 |
2-Web |
3 17/32 |
2 1/2 |
0 |
3/4 |
4 1/8 |
3/4 |
1 3/4 |
9/32 |
22.8 |
| 9.4 |
9.80 |
7 5/8 |
3TC94 |
Q1 |
2-Arm |
3 17/32 |
2 1/2 |
0 |
3/4 |
4 1/8 |
3/4" |
1 3/4 |
9/32 |
23.0 |
| 9.6 |
10.00 |
7 13/16 |
3TC96 |
Q1 |
2-Arm |
3 17/32 |
2 1/2 |
0 |
3/4 |
4 1/8 |
3/4 |
1 3/4 |
9/32 |
25.3 |
| 9.8 |
10.20 |
8 |
3TC98 |
Q1 |
2-Arm |
3 17/32 |
2 1/2 |
0 |
3/4 |
4 1/8 |
3/4 |
1 3/4 |
9/32 |
24.4 |
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 10.0 |
10.40 |
8 1/4 |
3TC100 |
Q1 |
2-Arm |
3 17/32 |
2 1/2 |
0 |
3/4 |
4 1/8 |
3/4 |
1 3/4 |
9/32 |
27.6 |
| 10.2 |
10.60 |
8 7/16 |
3TC102 |
Q1 |
2-Arm |
3 17/32 |
2 1/2 |
0 |
3/4 |
4 1/8 |
3/4 |
1 3/4 |
9/32 |
24.9 |
| 10.6 |
11.00 |
8 13/16 |
3TC106 |
Q1 |
2-Arm |
3 17/32 |
2 1/2 |
0 |
3/4 |
4 1/8 |
3/4 |
1 3/4 |
9/32 |
26.9 |
| 11.0 |
11.40 |
9 1/4 |
3TC110 |
Q1 |
2-Arm |
3 17/32 |
2 1/2 |
0 |
3/4 |
4 1/8 |
3/4 |
1 3/4 |
9/32 |
27.4 |
| 11.4 |
11.80 |
9 5/8 |
3TC114 |
Q1 |
2-Arm |
3 17/32 |
2 1/2 |
0 |
3/4 |
4 1/8 |
3/4 |
1 3/4 |
9/32 |
28.3 |
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 12.0 |
12.40 |
10 1/4 |
3TC120 |
Q1 |
2-Arm |
3 17/32 |
2 1/2 |
0 |
3/4 |
4 1/8 |
3/4 |
1 3/4 |
9/32 |
30.3 |
| 13.0 |
13.40 |
11 1/4 |
3TC130 |
Q1 |
2-Arm |
3 17/32 |
2 1/2 |
0 |
3/4 |
4 1/8 |
3/4 |
1 3/4 |
9/32 |
34.9 |
| 16.0 |
16.40 |
14 1/4 |
3TC160 |
Q1 |
2-Arm |
3 17/32 |
2 1/2 |
0 |
3/4 |
4 1/8 |
3/4 |
1 3/4 |
9/32 |
46.0 |
| 20.0 |
20.40 |
18 1/4 |
3TC200 |
Q1 |
2-Arm |
3 17/32 |
2 1/2 |
0 |
3/4 |
4 1/8 |
3/4 |
1 3/4 |
9/32 |
54.5 |
| 24.0 |
24.40 |
22 1/4 |
3TC240 |
Q1 |
2-Arm |
3 17/32 |
2 1/2 |
0 |
3/4 |
4 1/8 |
3/4 |
1 3/4 |
9/32 |
71.0 |
| Table No.6 |
|
|
| DIAMETERS |
1 GROOVE, F = 1 1/4" |
| Dautum "C" |
Outside |
Inside |
part Number |
Type |
Dimensions |
Wt. Less Bush. |
| Sheave |
Bushing |
O.L. |
L |
P |
C |
H |
G |
X |
E |
| 7.0" |
7.40" |
5 1/4" |
4TC70 |
Q2 |
4-Web |
4 17/32" |
3 1/2" |
0 |
3/4" |
4 1/8" |
3/4" |
2 3/4" |
9/32" |
23.8 |
| 7.2 |
7.60 |
5 7/16 |
4TC72 |
Q2 |
4-Web |
4 17/32 |
3 1/2 |
0 |
3/4 |
4 1/8 |
3/4 |
2 3/4 |
9/32 |
26.8 |
| 7.4 |
7.80 |
5 5/8 |
4TC74 |
Q2 |
4-Web |
4 17/32 |
3 1/2 |
0 |
3/4 |
4 1/8 |
3/4" |
2 3/4 |
9/32 |
27.5 |
| 7.6 |
8.00 |
5 13/16 |
4TC76 |
Q2 |
4-Web |
4 17/32 |
3 1/2 |
0 |
3/4 |
4 1/8 |
3/4 |
2 3/4 |
9/32 |
30.3 |
| 7.8 |
8.20 |
6 |
4TC78 |
Q2 |
4-Web |
4 17/32 |
3 1/2 |
0 |
3/4 |
4 1/8 |
3/4" |
2 3/4 |
9/32 |
26.4 |
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 8.0 |
8.40 |
6 1/4 |
4TC80 |
Q2 |
4-Web |
4 17/32 |
3 1/2 |
0 |
3/4 |
4 1/8 |
3/4" |
2 3/4 |
9/32 |
29.0 |
| 8.2 |
8.60 |
6 7/16 |
4TC82 |
Q2 |
4-Web |
4 17/32 |
3 1/2 |
0 |
3/4 |
4 1/8 |
3/4 |
2 3/4 |
9/32 |
26.8 |
| 8.4 |
8.80 |
6 5/8 |
4TC84 |
Q2 |
4-Web |
4 17/32 |
3 1/2 |
0 |
3/4 |
4 1/8 |
3/4" |
2 3/4 |
9/32 |
28.8 |
| 8.6 |
9.00 |
6 13/16 |
4TC86 |
Q2 |
4-Web |
4 17/32 |
3 1/2 |
0 |
3/4 |
4 1/8 |
3/4 |
2 3/4 |
9/32 |
27.9 |
| 8.8 |
9.20 |
7 |
4TC88 |
Q2 |
4-Web |
4 17/32 |
3 1/2 |
0 |
3/4 |
4 1/8 |
3/4" |
2 3/4 |
9/32 |
31.6 |
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 9.0 |
9.40 |
7 1/4 |
4TC90 |
Q2 |
4-Web |
4 17/32 |
3 1/2 |
0 |
3/4 |
4 1/8 |
3/4" |
2 3/4 |
9/32 |
28.4 |
| 9.2 |
9.60 |
7 7/16 |
4TC92 |
Q2 |
4-Web |
4 17/32 |
3 1/2 |
0 |
3/4 |
4 1/8 |
3/4 |
2 3/4 |
9/32 |
32.3 |
| 9.4 |
9.80 |
7 5/8 |
4TC94 |
Q2 |
4-Arm |
4 17/32 |
3 1/2 |
0 |
3/4 |
4 1/8 |
3/4" |
2 3/4 |
9/32 |
31.8 |
| 9.6 |
10.00 |
7 13/16 |
4TC96 |
Q2 |
4-Arm |
4 17/32 |
3 1/2 |
0 |
3/4 |
4 1/8 |
3/4 |
2 3/4 |
9/32 |
35.2 |
| 9.8 |
10.20 |
8 |
4TC98 |
Q2 |
4-Arm |
4 17/32 |
3 1/2 |
0 |
3/4 |
4 1/8 |
3/4 |
2 3/4 |
9/32 |
33.0 |
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 10.0 |
10.40 |
8 1/4 |
4TC100 |
Q2 |
4-Arm |
4 17/32 |
3 1/2 |
0 |
3/4 |
4 1/8 |
3/4 |
2 3/4 |
9/32 |
37.0 |
| 10.2 |
10.60 |
8 7/16 |
4TC102 |
Q2 |
4-Arm |
4 17/32 |
3 1/2 |
0 |
3/4 |
4 1/8 |
3/4 |
2 3/4 |
9/32 |
33.5 |
| 10.6 |
11.00 |
8 13/16 |
4TC106 |
Q2 |
4-Arm |
4 17/32 |
3 1/2 |
0 |
3/4 |
4 1/8 |
3/4 |
2 3/4 |
9/32 |
36.3 |
| 11.0 |
11.40 |
9 1/4 |
4TC110 |
Q2 |
4-Arm |
4 17/32 |
3 1/2 |
0 |
3/4 |
4 1/8 |
3/4 |
2 3/4 |
9/32 |
36.3 |
| 11.4 |
11.80 |
9 5/8 |
4TC114 |
Q2 |
4-Arm |
4 17/32 |
3 1/2 |
0 |
3/4 |
4 1/8 |
3/4 |
2 3/4 |
9/32 |
38.4 |
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 12.0 |
12.40 |
10 1/4 |
4TC120 |
Q2 |
4-Arm |
4 17/32 |
3 1/2 |
0 |
3/4 |
4 1/8 |
3/4 |
2 3/4 |
9/32 |
40.5 |
| 13.0 |
13.40 |
11 1/4 |
4TC130 |
Q2 |
4-Arm |
4 17/32 |
3 1/2 |
0 |
3/4 |
4 1/8 |
3/4 |
2 3/4 |
9/32 |
43.6 |
| 16.0 |
16.40 |
14 1/4 |
4TC160 |
Q2 |
4-Arm |
4 17/32 |
3 1/2 |
0 |
3/4 |
4 1/8 |
3/4 |
2 3/4 |
9/32 |
56.0 |
| 20.0 |
20.40 |
18 1/4 |
4TC200 |
Q2 |
4-Arm |
4 17/32 |
3 1/2 |
0 |
3/4 |
4 1/8 |
3/4 |
2 3/4 |
9/32 |
72.0 |
| 24.0 |
24.40 |
22 1/4 |
4TC240 |
Q2 |
4-Arm |
4 17/32 |
3 1/2 |
0 |
3/4 |
4 1/8 |
3/4 |
2 3/4 |
9/32 |
85.3 |
| Table No.7 |
|
|
| DIAMETERS |
1 GROOVE, F = 1 1/4" |
| Dautum "C" |
Outside |
Inside |
part Number |
Type |
Dimensions |
Wt. Less Bush. |
| Sheave |
Bushing |
O.L. |
L |
P |
C |
H |
G |
X |
E |
| 7.0" |
7.40" |
5 1/4" |
5TC70 |
Q2 |
5-Web |
5 1/4" |
3 1/2" |
1/2" |
1 1/4" |
4 1/8" |
3/4" |
2 3/4" |
9/32" |
27.5 |
| 7.2 |
7.60 |
5 7/16 |
5TC72 |
Q2 |
5-Web |
5 1/4 |
3 1/2 |
1/2 |
1 1/4 |
4 1/8 |
3/4 |
2 3/4 |
9/32 |
29.8 |
| 7.4 |
7.80 |
5 5/8 |
5TC74 |
Q2 |
5-Web |
5 1/4 |
3 1/2 |
1/2 |
1 1/4 |
4 1/8 |
3/4" |
2 3/4 |
9/32 |
31.0 |
| 7.6 |
8.00 |
5 13/16 |
5TC76 |
Q2 |
5-Web |
5 1/4 |
3 1/2 |
1/2 |
1 1/4 |
4 1/8 |
3/4 |
2 3/4 |
9/32 |
34.3 |
| 7.8 |
8.20 |
6 |
5TC78 |
Q2 |
5-Web |
5 1/4 |
3 1/2 |
1/2 |
1 1/4 |
4 1/8 |
3/4" |
2 3/4 |
9/32 |
30.0 |
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 8.0 |
8.40 |
6 1/4 |
5TC80 |
Q2 |
5-Web |
5 1/4 |
3 1/2 |
1/2 |
1 1/4 |
4 1/8 |
3/4" |
2 3/4 |
9/32 |
33.4 |
| 8.2 |
8.60 |
6 7/16 |
5TC82 |
Q2 |
5-Web |
5 1/4 |
3 1/2 |
1/2 |
1 1/4 |
4 1/8 |
3/4 |
2 3/4 |
9/32 |
30.3 |
| 8.4 |
8.80 |
6 5/8 |
5TC84 |
Q2 |
5-Web |
5 1/4 |
3 1/2 |
1/2 |
1 1/4 |
4 1/8 |
3/4" |
2 3/4 |
9/32 |
32.8 |
| 8.6 |
9.00 |
6 13/16 |
5TC86 |
Q2 |
5-Web |
5 1/4 |
3 1/2 |
1/2 |
1 1/4 |
4 1/8 |
3/4 |
2 3/4 |
9/32 |
31.0 |
| 8.8 |
9.20 |
7 |
5TC88 |
Q2 |
5-Web |
5 1/4 |
3 1/2 |
1/2 |
1 1/4 |
4 1/8 |
3/4" |
2 3/4 |
9/32 |
34.9 |
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 9.0 |
9.40 |
7 1/4 |
5TC90 |
Q2 |
5-Web |
5 1/4 |
3 1/2 |
1/2 |
1 1/4 |
4 1/8 |
3/4" |
2 3/4 |
9/32 |
32.6 |
| 9.2 |
9.60 |
7 7/16 |
5TC92 |
Q2 |
5-Web |
5 1/4 |
3 1/2 |
1/2 |
1 1/4 |
4 1/8 |
3/4 |
2 3/4 |
9/32 |
36.4 |
| 9.4 |
9.80 |
7 5/8 |
5TC94 |
Q2 |
5-Arm |
5 1/4 |
3 1/2 |
1/2 |
1 1/4 |
4 1/8 |
3/4" |
2 3/4 |
9/32 |
35.6 |
| 9.6 |
10.00 |
7 13/16 |
5TC96 |
Q2 |
5-Arm |
5 1/4 |
3 1/2 |
1/2 |
1 1/4 |
4 1/8 |
3/4 |
2 3/4 |
9/32 |
39.1 |
| 9.8 |
10.20 |
8 |
5TC98 |
Q2 |
5-Arm |
5 1/4 |
3 1/2 |
1/2 |
1 1/4 |
4 1/8 |
3/4 |
2 3/4 |
9/32 |
37.3 |
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 10.0 |
10.40 |
8 1/4 |
5TC100 |
Q2 |
5-Arm |
5 1/4 |
3 1/2 |
1/2 |
1 1/4 |
4 1/8 |
3/4 |
2 3/4 |
9/32 |
42.3 |
| 10.2 |
10.60 |
8 7/16 |
5TC102 |
Q2 |
5-Arm |
5 1/4 |
3 1/2 |
1/2 |
1 1/4 |
4 1/8 |
3/4 |
2 3/4 |
9/32 |
39.4 |
| 10.6 |
11.00 |
8 13/16 |
5TC106 |
Q2 |
5-Arm |
5 1/4 |
3 1/2 |
1/2 |
1 1/4 |
4 1/8 |
3/4 |
2 3/4 |
9/32 |
41.0 |
| 11.0 |
11.40 |
9 1/4 |
5TC110 |
Q2 |
5-Arm |
5 1/4 |
3 1/2 |
1/2 |
1 1/4 |
4 1/8 |
3/4 |
2 3/4 |
9/32 |
42.4 |
| 11.4 |
11.80 |
9 5/8 |
5TC114 |
Q2 |
5-Arm |
5 1/4 |
3 1/2 |
1/2 |
1 1/4 |
4 1/8 |
3/4 |
2 3/4 |
9/32 |
42.8 |
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 12.0 |
12.40 |
10 1/4 |
5TC120 |
Q2 |
5-Arm |
5 1/4 |
3 1/2 |
1/2 |
1 1/4 |
4 1/8 |
3/4 |
2 3/4 |
9/32 |
46.3 |
| 13.0 |
13.40 |
11 1/4 |
5TC130 |
Q2 |
5-Arm |
5 1/4 |
3 1/2 |
1/2 |
1 1/4 |
4 1/8 |
3/4 |
2 3/4 |
9/32 |
49.5 |
| 16.0 |
16.40 |
14 1/4 |
5TC160 |
Q2 |
5-Arm |
5 1/4 |
3 1/2 |
1/2 |
1 1/4 |
4 1/8 |
3/4 |
2 3/4 |
9/32 |
64.5 |
| 20.0 |
20.40 |
18 1/4 |
5TC200 |
Q2 |
5-Arm |
5 1/4 |
3 1/2 |
1/2 |
1 1/4 |
4 1/8 |
3/4 |
2 3/4 |
9/32 |
78.0 |
| 24.0 |
24.40 |
22 1/4 |
5TC240 |
Q2 |
5-Arm |
5 1/4 |
3 1/2 |
1/2 |
1 1/4 |
4 1/8 |
3/4 |
2 3/4 |
9/32 |
96.0 |
|
| Table No.8 |
|
|
|
|
|
|
|
|
|
|
|
|
|
| DIAMETERS |
1 GROOVE, F = 1 1/4" |
| Dautum "C" |
Outside |
Inside |
part Number |
Type |
Dimensions |
Wt. Less Bush. |
| Sheave |
Bushing |
O.L. |
L |
P |
C |
H |
G |
X |
E |
| 7.0" |
7.40" |
5 1/4" |
6TC70 |
Q2 |
5-Web |
6 1/4" |
3 1/2" |
1" |
1 3/4" |
4 1/8" |
3/4" |
2 3/4" |
9/32" |
29.9 |
| 7.2 |
7.60 |
5 7/16 |
6TC72 |
Q2 |
5-Web |
6 1/4 |
3 1/2 |
1 |
1 3/4 |
4 1/8 |
3/4 |
2 3/4 |
9/32 |
33.6 |
| 7.4 |
7.80 |
5 5/8 |
6TC74 |
Q2 |
5-Web |
6 1/4 |
3 1/2 |
1 |
1 3/4 |
4 1/8 |
3/4" |
2 3/4 |
9/32 |
33.3 |
| 7.6 |
8.00 |
5 13/16 |
6TC76 |
Q2 |
5-Web |
6 1/4 |
3 1/2 |
1 |
1 3/4 |
4 1/8 |
3/4 |
2 3/4 |
9/32 |
37.9 |
| 7.8 |
8.20 |
6 |
6TC78 |
Q2 |
5-Web |
6 1/4 |
3 1/2 |
1 |
1 3/4 |
4 1/8 |
3/4" |
2 3/4 |
9/32 |
33.5 |
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 8.0 |
8.40 |
6 1/4 |
6TC80 |
Q2 |
5-Web |
6 1/4 |
3 1/2 |
1 |
1 3/4 |
4 1/8 |
3/4" |
2 3/4 |
9/32 |
37.6 |
| 8.2 |
8.60 |
6 7/16 |
6TC82 |
Q2 |
5-Web |
6 1/4 |
3 1/2 |
1 |
1 3/4 |
4 1/8 |
3/4 |
2 3/4 |
9/32 |
34.0 |
| 8.4 |
8.80 |
6 5/8 |
6TC84 |
Q2 |
5-Web |
6 1/4 |
3 1/2 |
1 |
1 3/4 |
4 1/8 |
3/4" |
2 3/4 |
9/32 |
37.0 |
| 8.6 |
9.00 |
6 13/16 |
6TC86 |
Q2 |
5-Web |
6 1/4 |
3 1/2 |
1 |
1 3/4 |
4 1/8 |
3/4 |
2 3/4 |
9/32 |
35.0 |
| 8.8 |
9.20 |
7 |
6TC88 |
Q2 |
5-Web |
6 1/4 |
3 1/2 |
1 |
1 3/4 |
4 1/8 |
3/4" |
2 3/4 |
9/32 |
39.4 |
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 9.0 |
9.40 |
7 1/4 |
6TC90 |
Q2 |
5-Web |
6 1/4 |
3 1/2 |
1 |
1 3/4 |
4 1/8 |
3/4" |
2 3/4 |
9/32 |
36.8 |
| 9.2 |
9.60 |
7 7/16 |
6TC92 |
Q2 |
5-Web |
6 1/4 |
3 1/2 |
1 |
1 3/4 |
4 1/8 |
3/4 |
2 3/4 |
9/32 |
41.0 |
| 9.4 |
9.80 |
7 5/8 |
6TC94 |
Q2 |
5-Arm |
6 1/4 |
3 1/2 |
1 |
1 3/4 |
4 1/8 |
3/4" |
2 3/4 |
9/32 |
39.4 |
| 9.6 |
10.00 |
7 13/16 |
6TC96 |
Q2 |
5-Arm |
6 1/4 |
3 1/2 |
1 |
1 3/4 |
4 1/8 |
3/4 |
2 3/4 |
9/32 |
43.6 |
| 9.8 |
10.20 |
8 |
6TC98 |
Q2 |
5-Arm |
6 1/4 |
3 1/2 |
1 |
1 3/4 |
4 1/8 |
3/4 |
2 3/4 |
9/32 |
42.0 |
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 10.0 |
10.40 |
8 1/4 |
6TC100 |
Q2 |
5-Arm |
6 1/4 |
3 1/2 |
1 |
1 3/4 |
4 1/8 |
3/4 |
2 3/4 |
9/32 |
47.3 |
| 10.2 |
10.60 |
8 7/16 |
6TC102 |
Q2 |
5-Arm |
6 1/4 |
3 1/2 |
1 |
1 3/4 |
4 1/8 |
3/4 |
2 3/4 |
9/32 |
44.4 |
| 10.6 |
11.00 |
8 13/16 |
6TC106 |
Q2 |
5-Arm |
6 1/4 |
3 1/2 |
1 |
1 3/4 |
4 1/8 |
3/4 |
2 3/4 |
9/32 |
45.4 |
| 11.0 |
11.40 |
9 1/4 |
6TC110 |
Q2 |
5-Arm |
6 1/4 |
3 1/2 |
1 |
1 3/4 |
4 1/8 |
3/4 |
2 3/4 |
9/32 |
47.0 |
| 11.4 |
11.80 |
9 5/8 |
6TC114 |
Q2 |
5-Arm |
6 1/4 |
3 1/2 |
1 |
1 3/4 |
4 1/8 |
3/4 |
2 3/4 |
9/32 |
49.6 |
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 12.0 |
12.40 |
10 1/4 |
6TC120 |
Q2 |
5-Arm |
6 1/4 |
3 1/2 |
1 |
1 3/4 |
4 1/8 |
3/4 |
2 3/4 |
9/32 |
51.0 |
| 13.0 |
13.40 |
11 1/4 |
6TC130 |
Q2 |
5-Arm |
6 1/4 |
3 1/2 |
1 |
1 3/4 |
4 1/8 |
3/4 |
2 3/4 |
9/32 |
56.0 |
| 16.0 |
16.40 |
14 1/4 |
6TC160 |
Q2 |
5-Arm |
6 1/4 |
3 1/2 |
1 |
1 3/4 |
4 1/8 |
3/4 |
2 3/4 |
9/32 |
72.0 |
| 20.0 |
20.40 |
18 1/4 |
6TC200 |
Q2 |
5-Arm |
6 1/4 |
3 1/2 |
1 |
1 3/4 |
4 1/8 |
3/4 |
2 3/4 |
9/32 |
88.3 |
| 24.0 |
24.40 |
22 1/4 |
6TC240 |
Q2 |
5-Arm |
6 1/4 |
3 1/2 |
1 |
1 3/4 |
4 1/8 |
3/4 |
2 3/4 |
9/32 |
108 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
