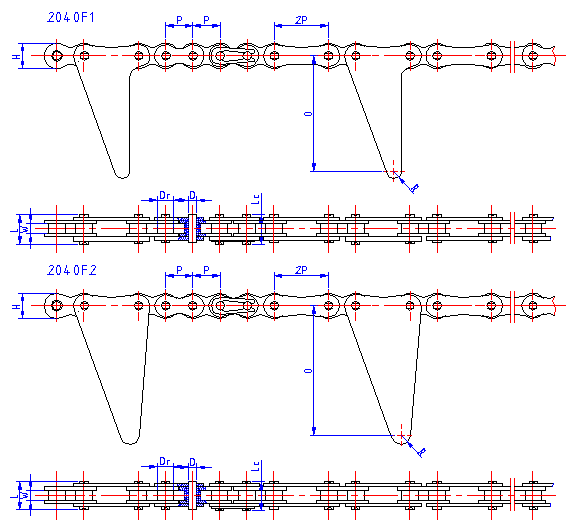

Chain NO.	Pitch	Roller Diameter	Width Between Inner Plates	Pin Diameter	Pin Length		Inner Plate Depth	Attachment Dimensions		Ultimate Tensile Strength	Averahe Tensile Strength	Weight Per Meter
	P	Dr max	W min	D max	L max	Lc max	H max	O	R	min	KN	Kg/m
	mm	mm	mm	mm	mm	mm	mm	mm	mm	KN
2040F1	12.70	7.95	5.00	3.96	13.80	14.80	12.00	54.00	3.50	13.80	17.80	0.54
2042F2	12.70	7.95	5.00	3.96	13.80	14.80	12.00	60.50	4.50	13.80	17.80	0.62
