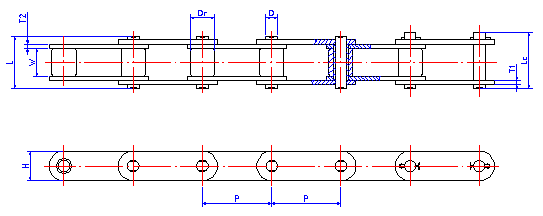

Timber conveyor chains
---------------------------------------
กก
Chain
NO.
Pitch
Roller Diameter
Width Between Inner Plates
Pin Diameter
Pin
Length
Plate Depth
Plate Thickness
Ultimate Tensile Strength
Weight Meter
P
Dr
W
min
D
max
L
max
Lc
max
H
max
T1
max
T2
max
min
KN
Kg/m
mm
mm
mm
mm
mm
mm
mm
mm
mm
81X
66.27
23.00
26.97
11.10
49.00
54.00
28.50
4.00
4.00
106.70
3.78
81XH
66.27
23.00
27.80
11.10
61.00
65.50
31.40
5.60
7.95
152.00
5.90
81XHD
66.27
23.00
27.80
11.10
65.80
70.50
31.40
7.95
7.95
191.50
6.75
