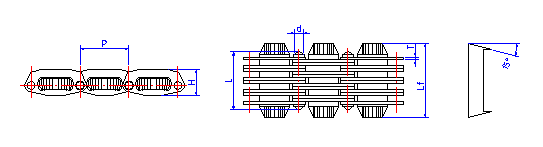

Chain NO.	Pitch	Pin Diameter	Pin Length	Plate Depth	Plate Thickness	Width Over Friction Plate	Ultimate Tensile Strength	Weight Per Meter
	P	dr max	L min	H max	T max	Lf max	min KN	Kg/m
	mm	mm	mm	mm	mm	mm
A0	18.75	3.00	19.50	9.50	1.00	24.00	9.18	1.00
A2	25.00	3.00	30.10	13.50	1.50	37.80	21.42	2.10
A3	28.60	3.00	35.30	16.00	1.50	44.20	39.27	3.00
A4	36.00	4.00	48.50	20.50	1.50	58.50	62.73	5.40
A5	36.00	4.00	60.50	20.50	1.50	70.00	72.42	6.70
A6	44.40	5.40	69.00	23.70	1.60	77.00	127.50	9.00
