Short pitch Transmission precision roller chains (B series):
---------------------------------------
06B

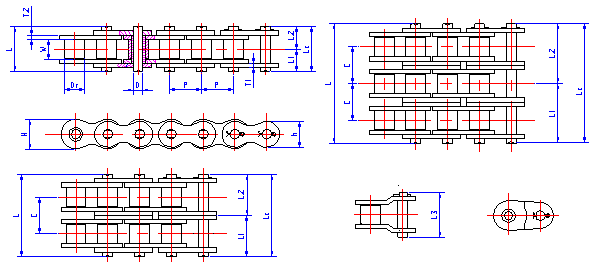

General Dimensions
(Unit):mm
ISO Chain
NO.
ANSI Chain
NO.
Pitch
Bush Diameter
max
Width Between Inner Plates
min
Pin Diameter
max
Plate Thickness
max
Inner
Plate Depth
max
Outer
Plate Depth max
P
Dr
W
D
T1
T2
H
h
06B
06B
9.525
6.35
5.72
3.28
1.30
1.30
8.26
8.26
Dimensions of strands
Chain
NO.
Pin Length
Transverse Pitch
Average
Tensile Strength
Tensile
Strength
min
Weigtht
Per
Meter
L
max
Lc
max
L1
max
L2
max
L3
max
C
KN
KN
Kg/m
06B-1
13.50
14.40
6.75
7.65
14.60
10.24
9.80
8.90
0.44
06B-2
23.80
24.47
11.90
12.57
24.70
18.00
16.90
0.85
06B-3
34.00
34.50
17.00
17.50
34.70
28.80
24.90
1.26
