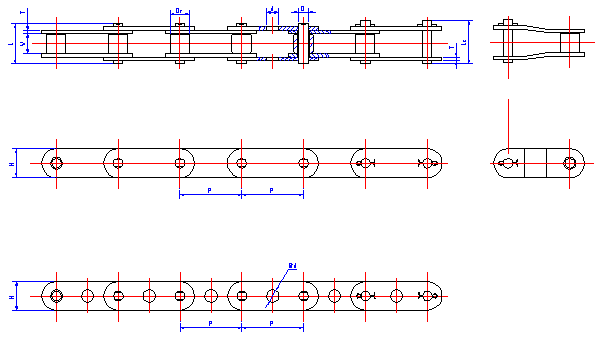

Double pitch small roller conveyor chains
---------------------------------------
กกกกกก
ISO Chain NO.
Chain NO.
Pitch
Roller Diameter
Width Between Inner Plates
Pin Diameter
Center Hole Diameter
Pin Length
Inner Plate Depth
Plate Thickness
Tensile Strength
Average Tensile Strength
Weigtht Per Meter
P
Dr
max
W
min
D
max
d
max
L
max
Lc
max
H
max
T
max
min
KN
Kg/m
mm
mm
mm
mm
mm
mm
mm
mm
mm
KN
C208A
C2040
25.40
7.92
7.85
3.98
4.10
17.80
19.80
12.07
1.50
13.80
17.80
0.56
C210A
C2050
31.75
10.16
9.40
5.09
5.20
21.80
23.80
15.09
2.03
21.80
29.20
0.80
C212A
C2060
38.10
11.91
12.57
5.96
6.10
26.90
29.40
18.08
2.42
31.10
41.60
1.15
C216A
C2080
50.80
15.88
15.75
7.94
8.10
33.50
36.50
24.13
3.25
55.60
72.00
2.10
C220A
C2100
63.50
19.05
18.90
9.54
9.70
41.10
44.60
30.18
4.00
86.70
110.20
3.08
C224A
C2120
76.20
22.23
25.22
11.11
11.30
50.80
54.80
36.20
4.80
124.60
157.20
4.68
C232A
C2160
101.60
28.58
31.55
14.29
14.50
65.50
70.50
48.26
6.40
222.40
275.00
8.25
C208AH
C2040H
25.40
7.92
7.85
3.98
4.10
20.10
22.10
12.07
2.03
13.80
17.80
0.68
C210AH
C2050H
31.75
10.16
9.40
5.09
5.20
23.80
25.80
15.09
2.42
21.80
29.20
0.96
C212AH
C2060H
38.10
11.91
12.57
5.96
6.10
30.40
32.90
18.08
3.25
31.10
41.60
1.46
C216AH
C2080H
50.80
15.88
15.75
7.94
8.10
36.70
39.70
24.13
4.00
55.60
72.00
2.58
C220AH
C2100H
63.50
19.05
18.90
9.54
9.70
44.50
48.00
30.18
4.80
86.70
110.20
3.59
C224AH
C2120H
76.20
22.23
25.22
11.11
11.30
54.20
58.20
36.20
5.60
124.60
157.20
5.29
C232AH
C2160H
101.60
28.58
31.55
14.29
14.50
68.70
73.70
48.26
7.15
222.40
275.00
9.10
