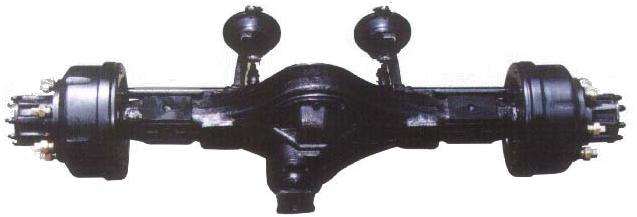

Auto behind axle
Main parameter
| TYPE | Payload (kg) | Track (mm) | space between(mm) | decelerate ratio | Maximum output torque （N.m） | Selected ratio | Brake specification (mm) | Suitable rim(mm) | Diameter of hub bolt distributed circular (mm) | ABS
set |
| Engine former/pressing jointing axle | 1000 | 1400 | 1000 | 4.55 | 5000 | 4.1 | φ254×55 | φ271 | φ143 | without |
| Engine former/pressing jointing axle | 2500 | 1430 | 900 | 5.833 | 6000 | φ310×64 | φ330 | φ190 | without | |
| Engine former/pressing jointing axle | 2500 | 1400 | 840 | 5.833 | 4000 | φ310×64 | φ330 | φ190 | without | |
| Engine former/pressing jointing axle | 2500 | 1380 | 910 | 5.833 | 4000 | φ310×64 | φ330 | φ190 | without | |
| Engine former/pressing jointing axle | 2500 | 1470 | 940 | 5.833 | 4000 | φ310×64 | φ330 | φ190 | without | |
| Engine former/pressing jointing axle | 2500 | 1370 | 844 | 5.833 | 4000 | φ310×64 | φ330 | φ190 | without | |
| Engine former/pressing jointing axle | 2500 | 1418 | 895 | 5.833 | 6000 | φ310×64 | φ330 | φ190 | without | |
| Engine former/pressing jointing axle | 2500 | 1366 | 855 | 5.833 | 4000 | φ260×55 | φ280 | φ190 | without | |
| Engine former/pressing jointing axle | 3000 | 1470 | 890 | 5.833 | 6000 | φ310×64 | φ330 | φ190 | without | |
| Engine former/pressing jointing axle | 3000 | 1370 | 850 | 5.833 | 4000 | φ310×64 | φ330 | φ190 | without | |
| Engine former/pressing jointing axle | 3000 | 1458 | 895 | 5.833 | 4000 | φ310×75 | φ330 | φ190 | without | |
| Engine former/pressing jointing axle | 3500 | 1488 | 940 | 5.857 | 8000 | 6.143 | φ310×64 | φ330 | φ190 | without |
| Engine former/pressing jointing axle | 3500 | 1514 | 940 | 5.857 | 8000 | 6.143 | φ310×110 | φ330 | φ190 | without |
| Engine former/pressing jointing axle | 3500 | 1540 | 940 | 6.143 | 8000 | 5.857 | φ310×80 | φ330 | φ190 | without |
| Engine former/pressing jointing axle | 3500 | 1466 | 895 | 5.857 | 8000 | 6.17 | φ310×80 | φ330 | φ190 | without |
| Engine former/pressing jointing axle | 3500 | 1490 | 940 | 6.17 | 8000 | φ310×75 | φ332 | φ190 | without | |
| Engine former/pressing jointing axle | 4200 | 1586 | 952 | 4.875 | 9000 | 6.17 | φ320×95 | φ344 | φ222.25 | without |
| Engine former/pressing jointing axle | 4200 | 1586 | 952 | 4.875 | 9000 | 6.17 | φ320×95 | φ344 | φ222.25 | without |
| Engine former/pressing jointing axle | 4000 | 1586 | 950 | 6.17 | 9000 | 4.875 | φ320×95 | φ344 | φ222.25 | without |
| Engine postposition/pressing jointing axle | 4200 | 1586 | 952 | 4.56 | 9000 | 4.875/6.17 | φ320×95 | φ344 | φ222.25 | without |
| Engine former/pressing jointing axle | 4200 | 1580 | 952 | 4.875 | 9000 | 6.17 | φ302×100 | φ326 | φ222.25 | without |
| Engine former/pressing jointing axle | 4200 | 1586 | 952 | 4.875 | 9000 | 6.17 | φ320×130 | φ344 | φ222.25 | without |
| Engine former/pressing jointing axle | 4200 | 1586 | 952 | 4.875 | 9000 | 6.17 | φ304×100 | φ326 | φ222.25 | without |
| Engine former/pressing jointing axle | 4200 | 1586 | 952 | 4.875 | 9000 | 6.17 | φ310×130 | φ334 | φ222.25 | without |
| Engine former/pressing jointing axle | 4200 | 1586 | 952 | 4.875 | 9000 | 6.17 | φ320×120 | φ344 | φ222.25 | without |
| Engine postposition/pressing jointing axle | 4000 | 1586 | 952 | 4.875 | 11000 | 6.17 | φ320×95 | 5.5F-16 | φ222.25 | with ABS |
| Engine postposition/pressing jointing axle | 4000 | 1586 | 952 | 4.56 | 14000 | 4.875/6.17 | φ320×95 | 5.5F-16 | φ222.25 | with ABS |
| Engine former/pressing jointing axle | 5500 | 1586 | 880 | 4.875 | 14000 | 4.111/5.286 | φ320×120式 | 5.5F-16 | φ222.25 | without |
| Engine former/pressing jointing axle | 5500 | 1602 | 945 | 4.875 | 14000 | 4.111/5.286 | φ310×130式 | 6.5H-16 | φ222.25 | without |
| Engine former/pressing jointing axle | 5500 | 1602 | 968 | 4.56 | 11000 | 4.875/3.89 | φ310×130 | 5.5F-16 | φ222.25 | without |
| Engine former/pressing jointing axle | 5500 | 1658 | 1008 | 4.875 | 14000 | 4.111/5.286 | φ310×160 | 6.5H-16 | φ222.25 | with ABS |
| Engine postposition/pressing jointing axle | 5500 | 1602 | 968 | 4.875 | 14000 | 4.111/5.286 | φ310×160 | 6.5H-16 | φ222.25 | without |
| Engine former/found axle | 5500 | 1617 | 952 | 4.875 | 9000 | 6.17 | φ320×130 | φ344 | φ222.25 | without |
| Engine former/found axle | 5500 | 1485 | 880 | 6.17 | 9000 | 4.875 | φ380×80 | φ404 | φ222.5 | without |
| Engine former/pressing jointing axle | 6000 | 1658 | 968 | 5.286 | 14000 | 4.111/4.875 | φ400×155 | 7.0-20 | φ275 | without |
| Engine postposition/pressing jointing axle | 6000 | 1658 | 972 | 4.875 | 14000 | 4.111/5.286 | φ360×160 | 6.5H-20 | φ222.25 | with ABS |
| Engine postposition/pressing jointing axle | 6000 | 1658 | 988 | 4.111 | 14000 | 4.875/5.286 | φ400×155 | 6.5H-16 | φ275 | with ABS |
| Engine postposition/pressing jointing axle | 6000 | 1700 | 972 | 4.111 | 14000 | 4.875/5.286 | φ380 | 6.5H-16 | φ275 | with ABS |
| Engine former/found axle | 6500 | 1630 | 952 | 5.286 | 14000 | 4.111/4.875 | φ310×130 | 6.5H-16 | φ222.25 | without |
| Engine former/found axle | 6500 | 1630 | 952 | 6.333 | 17000 | 4.875 | φ320×130 | 6.5H-20 | φ222.25 | without |
| Engine former/found axle | 6500 | 1658 | 950 | 6.333 | 17000 | 4.875 | φ420×125 | 6.5H-20 | φ275 | without |
| Engine former/found axle | 6500 | 1630 | 969 | 6.333 | 17000 | 4.875 | φ360×160 | 6.5H-20 | φ275 | without |
| Engine postposition/pressing jointing axle | 8000 | 1800 | 1040 | 4.875 | 18000 | 4.111/4.333 | φ400×155 | 5.5F-16 | φ275 | with ABS |
| Engine postposition/pressing jointing axle | 8000 | 1800 | 1040 | 4.333 | 18000 | 4.111/4.875 | φ400×155 | 5.5F-16 | φ275 | with ABS |
| Engine postposition/pressing jointing axle | 8000 | 1740 | 972 | 4.875 | 18000 | 4.111/4.333 | φ400×180 | 5.5F-16 | φ275 | with ABS |
| Engine postposition/pressing jointing axle | 8000 | 1800 | 1040 | 4.875 | 18000 | φ400×155 | 7.0-20 | φ275 | with ABS | |
| Engine postposition/pressing jointing axle | 8000 | 1800 | 1030 | 4.875 | 18000 | 4.111/4.333 | φ400×155 | 7.0-20 | φ275 | with ABS |
| Engine postposition/pressing jointing axle | 8000 | 1740 | 988 | 4.333 | 18000 | 4.111/4.875 | φ360×160 | 7.0-20 | φ275 | with ABS |
| Engine postposition/pressing jointing axle | 9000 | 1800 | 1040 | 4.875 | 24000 | φ410×180 | 7.0-20 | φ275 | with ABS | |
| Engine postposition/pressing jointing axle | 8000 | 1800 | 1040 | 4.333 | 18000 | 4.875 | φ400×155 | 7.0-20 | φ275 | with ABS |
| Engine postposition/pressing jointing axle | 8000 | 1800 | 1030 | 4.875 | 18000 | 4.333 | φ400×180 | 7.0-20 | φ275 | with ABS |
