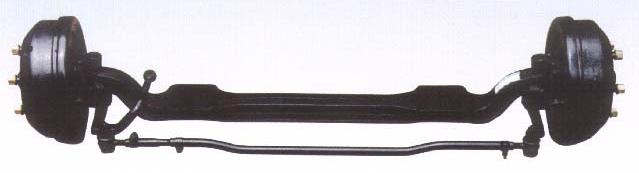

Auto front axle

Main parameter

Payload (kg) Track (mm) kingpin hole spacing (mm) space between (mm) Suitable rim (mm) angle of inner wheel angle of outer wheel toe-in (mm) Brake specification
-diameter×width (mm)		 Diameter of hub bolt distributed circular (mm) ABS
set
1200 1470 1329 640 φ330 38 30 1-4 φ310×64 φ190 without
1200 1380 1180 630 φ330 38 30 1-4 φ310×64 φ190 without
1200 1470 1326 760 φ330 38 30 1-4 φ310×64 φ190 without
1200 1400 1256 700 φ330 38 30 1-4 φ310×64 φ190 without
1500 1380 1249 700 φ330 38 30 1-4 φ310×75 φ190 without
1500 1380 1249 700 φ300 38 30 1-4 φ280×64 φ190 without
1500 1380 1249 700 φ330 38 30 1-4 φ310×75 φ190 without
1500 1400 1249 700 φ280 38 30 1-4 φ260×55 φ190 without
1800 1480 1329 760 φ330 38 30 2-4 φ310×64 φ190 without
1800 1514 1359 760 φ330 38 30 2-4 φ310×80 φ190 without
1800 1540 1389 760 φ330 38 30 2-4 φ310×64 φ190 without
1800 1510 1354 700 φ330 38 30 2-4 φ310×80 φ190 without
1800 1480 1329 760 φ332 38 30 2-4 φ310×75 φ222.5 without
2000 1650 1476 806 φ344 40 32 0-2 φ320×95 φ222.25 without
2000 1650 1476 806 φ344 40 32 0-2 φ320×95 φ222.25 without
2000 1650 1476 806 φ344 40 32 0-2 φ320×95 φ222.25 without
2000 1650 1476 750 φ344 40 32 0-2 φ320×95 φ222.25 without
2300 1740 1552.4 750 φ326 41 33 0-2 φ304×100 φ222.25 without
2450 1750 1552.4 800 φ328 36 32 2-4 φ306 φ222.25 without
2300 1750 1552.4 750 φ334 43 31 0-2 φ310×130 φ222.25 without
2300 1750 1552.4 750 φ334 43 31 0-2 φ320×130 φ222.25 without
2800 1810 1608.4 806 5.5F-16 41 33 0-2 φ310×130 φ222.25 without　
2700 1810 1680.4 860 6.5H-16 41 33 0-2 φ310×130 φ222.25 without
2700 1825 1608.4 806 5.00S-20 41 33 0-2 φ400×130 φ275 withABS
2700 1825 1608.4 826 6.5H-16 41 33 0-2 φ360×130 φ222.25 withABS
2700 1825 1608.4 826 6.5-20 41 33 0-2 φ330 φ222.25 withABS
3500 1900 1656 870 6.5-20 41 31 0-5 φ400×130 φ275 withABS
3500 1825 1597 826 7.0-20 41 33 0-5 φ380 φ275 withABS
3500 1858 1593 826 6.5-20 41 33 0-5 φ360×130 φ222.25 withABS
3000 1831 1593 871 6.5-20 41 33 0-5 φ400×130 φ275 without
3000 1831 1593 871 6.5-20 40 32 0-5 φ320×120 φ222.25 without
3000 1860 1593 851 6.5-20 41 33 0-5 φ330 φ222.25 withABS
3000 1800 1593 830 6.5-20 41 33 0-5 φ400×130 φ275 without
3500 1900 1656 890 6.5-20 41 33 0-5 φ330 φ222.25 without
